SDO HMI 2013-07-21 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.88 | 210.89 | 27.54 | 116.10 | -8.50 | 159.43 | -22.05 | 121.56 | 0.4374 | 447.7 | 322.6 | |
|
previous
or next observation for the same group /

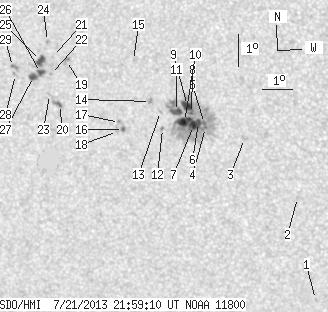

back to the solar disc SDO HMI 2013-07-21 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.60 | -14.36 | 164.18 | -17.30 | 138.64 | 0.4378 | 755.0 | 589.9 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -11.11 | 163.83 | -17.65 | 132.54 | 0.4055 | 789.0 | 634.5 | |
| 0.00 | 2.81 | 0.00 | 1.52 | -9.30 | 162.21 | -19.27 | 126.57 | 0.4072 | 675.0 | 699.8 | |
| 0.54 | 154.04 | 0.30 | 84.22 | -8.99 | 160.95 | -20.53 | 124.24 | 0.4208 | 1026.8 | 471.2 | |
| 0.82 | -4.00 | 0.45 | -4.00 | -8.86 | 160.93 | -20.56 | 123.96 | 0.4200 | 1240.6 | 999999 | |
| 2.27 | -4.00 | 1.24 | -4.00 | -8.84 | 160.73 | -20.75 | 123.65 | 0.4224 | 1230.2 | 999999 | |
| 7.62 | -4.00 | 4.17 | -4.00 | -8.94 | 160.56 | -20.92 | 123.63 | 0.4255 | 1172.2 | 999999 | |
| 0.73 | -4.00 | 0.40 | -4.00 | -8.56 | 160.52 | -20.97 | 122.83 | 0.4229 | 1219.9 | 999999 | |
| 7.16 | -4.00 | 3.91 | -4.00 | -8.32 | 160.40 | -21.08 | 122.19 | 0.4224 | 1139.1 | 999999 | |
| 10.70 | -4.00 | 5.86 | -4.00 | -8.82 | 160.27 | -21.21 | 123.04 | 0.4283 | 1131.0 | 999999 | |
| 5.80 | -4.00 | 3.18 | -4.00 | -8.52 | 160.02 | -21.46 | 122.13 | 0.4290 | 812.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -9.06 | 159.53 | -21.96 | 122.61 | 0.4402 | 706.0 | 578.5 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -8.53 | 159.49 | -21.99 | 121.53 | 0.4363 | 401.0 | 339.3 | |
| 0.00 | 2.90 | 0.00 | 1.60 | -8.23 | 159.18 | -22.31 | 120.57 | 0.4381 | 822.0 | 596.9 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -6.97 | 158.69 | -22.80 | 117.49 | 0.4354 | -639.0 | -372.4 | |
| 0.82 | 2.09 | 0.45 | 1.16 | -9.14 | 158.22 | -23.27 | 121.26 | 0.4581 | 914.7 | 726.0 | |
| 0.00 | 1.90 | 0.00 | 1.06 | -8.92 | 158.10 | -23.39 | 120.72 | 0.4580 | 708.0 | 451.4 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -9.21 | 158.01 | -23.48 | 121.17 | 0.4614 | 752.0 | 630.7 | |
| 0.00 | 3.26 | 0.00 | 1.83 | -7.05 | 156.43 | -25.05 | 115.46 | 0.4674 | -1064.0 | -841.6 | |
| 1.45 | 4.26 | 0.82 | 2.41 | -8.43 | 156.10 | -25.38 | 117.79 | 0.4813 | 844.1 | 628.4 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -6.94 | 155.96 | -25.52 | 114.83 | 0.4732 | -753.0 | -635.7 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -7.50 | 155.86 | -25.63 | 115.82 | 0.4783 | -838.0 | -740.9 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -8.13 | 155.78 | -25.70 | 116.93 | 0.4835 | 555.0 | 426.0 | |
| 0.00 | 1.72 | 0.00 | 0.97 | -6.48 | 155.82 | -25.67 | 113.82 | 0.4723 | -825.0 | -553.5 | |
| 5.08 | 22.03 | 2.86 | 12.45 | -7.08 | 155.54 | -25.94 | 114.74 | 0.4799 | -1004.6 | -559.3 | |
| 2.90 | -25.00 | 1.64 | -25.00 | -7.45 | 155.52 | -25.97 | 115.43 | 0.4827 | -1032.5 | 999999 | |
| 3.54 | -25.00 | 2.00 | -25.00 | -7.59 | 155.27 | -26.21 | 115.47 | 0.4869 | -931.9 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.03 | -7.55 | 154.65 | -26.83 | 114.88 | 0.4952 | -320.0 | -418.0 | |
| 0.45 | 3.99 | 0.26 | 2.27 | -7.30 | 154.57 | -26.92 | 114.35 | 0.4948 | -752.4 | -578.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
