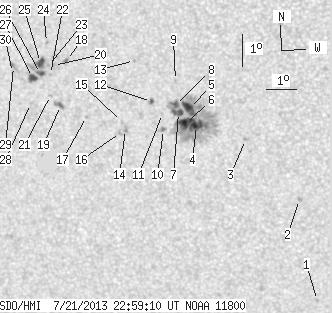

SDO HMI 2013-07-21 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.67 | 218.81 | 31.67 | 120.07 | -8.49 | 159.30 | -21.63 | 122.08 | 0.4318 | 391.7 | 286.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-07-21 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.85 | -14.37 | 164.22 | -16.71 | 139.64 | 0.4319 | 767.0 | 439.4 | |
| 0.00 | 2.09 | 0.00 | 1.13 | -11.16 | 163.86 | -17.07 | 133.58 | 0.3992 | 825.0 | 691.0 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -9.31 | 162.22 | -18.72 | 127.40 | 0.4003 | 922.0 | 755.9 | |
| 11.79 | 153.41 | 6.42 | 83.57 | -8.91 | 160.63 | -20.30 | 124.40 | 0.4171 | 1156.1 | 452.4 | |
| 10.34 | -4.00 | 5.62 | -4.00 | -8.39 | 160.43 | -20.50 | 123.08 | 0.4151 | 1174.9 | 999999 | |
| 12.24 | -4.00 | 6.68 | -4.00 | -8.86 | 160.28 | -20.66 | 123.83 | 0.4213 | 1107.4 | 999999 | |
| 5.08 | -4.00 | 2.77 | -4.00 | -8.52 | 160.06 | -20.87 | 122.88 | 0.4212 | 854.1 | 999999 | |
| 2.72 | -4.00 | 1.48 | -4.00 | -8.27 | 159.98 | -20.95 | 122.28 | 0.4203 | 794.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -7.52 | 160.02 | -20.91 | 120.78 | 0.4136 | 768.0 | 592.7 | |
| 0.63 | 3.17 | 0.35 | 1.74 | -9.07 | 159.53 | -21.40 | 123.32 | 0.4329 | 797.6 | 573.5 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -8.57 | 159.53 | -21.40 | 122.32 | 0.4287 | 293.0 | 199.8 | |
| 1.09 | 2.45 | 0.60 | 1.34 | -8.20 | 159.19 | -21.74 | 121.18 | 0.4303 | 715.1 | 542.0 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -6.94 | 158.70 | -22.23 | 118.04 | 0.4274 | -431.0 | -344.4 | |
| 0.00 | 2.54 | 0.00 | 1.41 | -9.11 | 158.27 | -22.66 | 121.89 | 0.4500 | 938.0 | 767.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -8.86 | 158.15 | -22.78 | 121.29 | 0.4495 | 708.0 | 474.6 | |
| 0.00 | 2.27 | 0.00 | 1.26 | -9.21 | 158.09 | -22.84 | 121.89 | 0.4531 | 446.0 | 586.0 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -8.75 | 156.98 | -23.95 | 119.81 | 0.4643 | -639.0 | -529.5 | |
| 0.45 | 2.36 | 0.25 | 1.31 | -7.02 | 156.42 | -24.51 | 115.91 | 0.4597 | -1051.2 | -856.0 | |
| 1.36 | 5.17 | 0.76 | 2.90 | -8.43 | 156.12 | -24.81 | 118.36 | 0.4735 | 805.5 | 588.9 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -7.19 | 155.97 | -24.96 | 115.83 | 0.4671 | -889.0 | -795.3 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -8.13 | 155.81 | -25.13 | 117.48 | 0.4757 | 697.0 | 605.4 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -7.48 | 155.85 | -25.08 | 116.27 | 0.4706 | -837.0 | -739.0 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -7.20 | 155.80 | -25.13 | 115.69 | 0.4695 | -912.0 | -664.4 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -6.48 | 155.77 | -25.16 | 114.27 | 0.4653 | -927.0 | -714.4 | |
| 4.81 | 26.84 | 2.70 | 15.10 | -7.11 | 155.53 | -25.40 | 115.29 | 0.4727 | -988.3 | -556.8 | |
| 2.72 | -25.00 | 1.53 | -25.00 | -7.46 | 155.51 | -25.42 | 115.93 | 0.4752 | -1031.1 | 999999 | |
| 4.44 | -25.00 | 2.51 | -25.00 | -7.59 | 155.23 | -25.70 | 115.94 | 0.4800 | -855.9 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -8.41 | 155.10 | -25.83 | 117.35 | 0.4872 | 552.0 | 323.8 | |
| 0.00 | 3.35 | 0.00 | 1.90 | -7.27 | 154.60 | -26.33 | 114.79 | 0.4866 | -827.0 | -616.6 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -7.46 | 154.55 | -26.38 | 115.11 | 0.4885 | -591.0 | -523.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
