SDO HMI 2013-07-21 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.60 | 206.46 | 27.67 | 112.92 | -8.47 | 159.27 | -21.11 | 122.69 | 0.4248 | 463.2 | 291.5 | |
|
previous
or next observation for the same group /

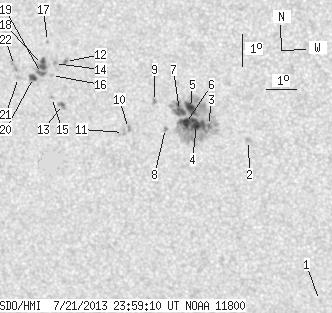

back to the solar disc SDO HMI 2013-07-21 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.50 | -14.39 | 164.22 | -16.15 | 140.62 | 0.4265 | 666.0 | 463.4 | |
| 0.00 | 3.26 | 0.00 | 1.76 | -9.35 | 162.24 | -18.13 | 128.38 | 0.3934 | 952.0 | 732.6 | |
| 0.91 | 148.98 | 0.49 | 80.88 | -8.91 | 160.97 | -19.41 | 125.62 | 0.4056 | 1146.7 | 477.9 | |
| 12.79 | -3.00 | 6.94 | -3.00 | -8.89 | 160.57 | -19.81 | 125.03 | 0.4105 | 1222.3 | 999999 | |
| 8.61 | -3.00 | 4.67 | -3.00 | -8.40 | 160.41 | -19.97 | 123.79 | 0.4083 | 1165.0 | 999999 | |
| 8.98 | -3.00 | 4.88 | -3.00 | -8.87 | 160.21 | -20.16 | 124.51 | 0.4151 | 1030.0 | 999999 | |
| 7.25 | -3.00 | 3.94 | -3.00 | -8.47 | 160.04 | -20.34 | 123.46 | 0.4138 | 848.8 | 999999 | |
| 0.36 | 1.72 | 0.20 | 0.94 | -9.05 | 159.54 | -20.83 | 123.99 | 0.4254 | 831.5 | 698.3 | |
| 0.00 | 2.45 | 0.00 | 1.34 | -8.21 | 159.23 | -21.15 | 121.92 | 0.4224 | 807.0 | 614.9 | |
| 0.00 | 2.36 | 0.00 | 1.30 | -9.09 | 158.32 | -22.06 | 122.55 | 0.4419 | 957.0 | 776.4 | |
| 0.00 | 2.54 | 0.00 | 1.40 | -9.22 | 158.14 | -22.24 | 122.60 | 0.4453 | 625.0 | 572.4 | |
| 0.54 | 2.27 | 0.30 | 1.26 | -7.06 | 156.33 | -24.05 | 116.45 | 0.4535 | -1047.0 | -865.6 | |
| 0.82 | 4.53 | 0.46 | 2.54 | -8.41 | 156.15 | -24.23 | 118.89 | 0.4656 | 812.7 | 640.9 | |
| 0.00 | 1.81 | 0.00 | 1.01 | -7.14 | 155.96 | -24.42 | 116.24 | 0.4592 | -942.0 | -850.1 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -8.20 | 155.79 | -24.59 | 118.14 | 0.4690 | 634.0 | 469.4 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -7.51 | 155.83 | -24.54 | 116.86 | 0.4635 | -841.0 | -675.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -6.46 | 155.76 | -24.62 | 114.71 | 0.4575 | -802.0 | -712.6 | |
| 5.08 | 23.03 | 2.84 | 12.90 | -7.18 | 155.55 | -24.83 | 115.95 | 0.4652 | -1048.5 | -686.0 | |
| 2.18 | -18.00 | 1.22 | -18.00 | -7.46 | 155.50 | -24.88 | 116.45 | 0.4678 | -1008.6 | 999999 | |
| 3.08 | -18.00 | 1.73 | -18.00 | -7.60 | 155.22 | -25.16 | 116.45 | 0.4726 | -917.7 | 999999 | |
| 0.00 | 2.99 | 0.00 | 1.69 | -7.62 | 154.71 | -25.67 | 116.02 | 0.4798 | -712.0 | -506.2 | |
| 0.00 | 5.62 | 0.00 | 3.17 | -7.25 | 154.59 | -25.78 | 115.22 | 0.4789 | -609.0 | -566.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
