SDO HMI 2013-07-22 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.75 | 122.67 | 21.58 | 64.94 | -8.44 | 159.36 | -15.53 | 131.23 | 0.3531 | 357.6 | 274.1 | |
|
previous
or next observation for the same group /

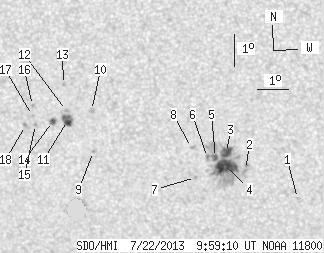

back to the solar disc SDO HMI 2013-07-22 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.57 | -9.78 | 162.72 | -12.18 | 140.64 | 0.3292 | 876.0 | 678.4 | |
| 0.00 | 4.99 | 0.00 | 2.62 | -8.90 | 161.10 | -13.79 | 135.30 | 0.3363 | 828.0 | 806.0 | |
| 7.26 | 85.46 | 3.82 | 45.04 | -8.38 | 160.52 | -14.37 | 132.99 | 0.3372 | 1151.1 | 465.9 | |
| 21.96 | -3.00 | 11.57 | -3.00 | -8.82 | 160.47 | -14.42 | 133.85 | 0.3427 | 1147.6 | 999999 | |
| 2.27 | -3.00 | 1.20 | -3.00 | -8.54 | 160.16 | -14.73 | 132.65 | 0.3433 | 911.3 | 999999 | |
| 0.00 | 2.99 | 0.00 | 1.58 | -8.55 | 159.91 | -14.98 | 132.17 | 0.3465 | 772.0 | 600.7 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -9.18 | 159.50 | -15.40 | 132.75 | 0.3584 | 858.0 | 747.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -8.25 | 159.41 | -15.48 | 130.58 | 0.3493 | 708.0 | 596.0 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -8.45 | 156.24 | -18.65 | 125.83 | 0.3918 | 848.0 | 749.0 | |
| 0.00 | 3.27 | 0.00 | 1.75 | -7.17 | 156.24 | -18.65 | 123.06 | 0.3802 | -891.0 | -684.8 | |
| 7.08 | 9.71 | 3.81 | 5.23 | -7.51 | 155.44 | -19.45 | 122.69 | 0.3939 | -1053.7 | -870.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -7.19 | 155.43 | -19.47 | 121.99 | 0.3915 | -993.0 | -766.5 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -6.39 | 155.36 | -19.53 | 120.12 | 0.3857 | -781.0 | -654.5 | |
| 2.18 | 3.81 | 1.18 | 2.06 | -7.55 | 154.95 | -19.94 | 122.14 | 0.4009 | -924.8 | -688.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -7.66 | 154.39 | -20.50 | 121.65 | 0.4095 | -900.0 | -720.9 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -7.07 | 154.32 | -20.57 | 120.31 | 0.4056 | -941.0 | -739.0 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -7.38 | 154.31 | -20.59 | 120.96 | 0.4084 | -822.0 | -682.0 | |
| 0.00 | 2.18 | 0.00 | 1.18 | -7.70 | 154.06 | -20.83 | 121.32 | 0.4143 | -857.0 | -716.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
