SDO HMI 2013-07-22 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.55 | 119.31 | 19.82 | 63.06 | -8.46 | 159.16 | -15.18 | 131.96 | 0.3497 | 326.5 | 220.5 | |
|
previous
or next observation for the same group /

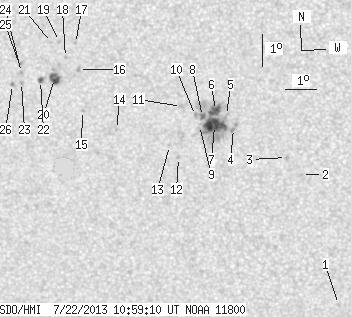

back to the solar disc SDO HMI 2013-07-22 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.63 | -14.46 | 164.19 | -10.15 | 152.80 | 0.3750 | 743.0 | 588.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -10.33 | 163.19 | -11.15 | 144.11 | 0.3260 | 837.0 | 639.5 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -9.80 | 162.74 | -11.61 | 142.02 | 0.3236 | 779.0 | 662.2 | |
| 0.00 | 3.36 | 0.00 | 1.76 | -8.92 | 161.10 | -13.25 | 136.49 | 0.3303 | 899.0 | 790.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -8.51 | 160.89 | -13.45 | 135.18 | 0.3279 | 909.0 | 622.6 | |
| 7.08 | 71.58 | 3.71 | 37.61 | -8.36 | 160.55 | -13.80 | 134.13 | 0.3302 | 1150.5 | 528.6 | |
| 20.77 | -6.00 | 10.92 | -6.00 | -8.84 | 160.50 | -13.85 | 135.05 | 0.3362 | 1146.5 | 999999 | |
| 1.63 | -6.00 | 0.86 | -6.00 | -8.56 | 160.13 | -14.22 | 133.70 | 0.3374 | 936.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -8.84 | 160.02 | -14.32 | 134.10 | 0.3419 | 296.0 | 240.8 | |
| 0.00 | 2.00 | 0.00 | 1.05 | -8.53 | 159.90 | -14.44 | 133.20 | 0.3397 | 782.0 | 585.7 | |
| 0.00 | 2.54 | 0.00 | 1.34 | -8.26 | 159.47 | -14.87 | 131.76 | 0.3420 | 736.0 | 548.5 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -9.87 | 159.30 | -15.04 | 134.80 | 0.3619 | 667.0 | 531.7 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -9.49 | 159.03 | -15.31 | 133.54 | 0.3608 | 718.0 | 566.2 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -9.03 | 157.35 | -16.99 | 129.63 | 0.3763 | -821.0 | -675.4 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -8.46 | 156.28 | -18.06 | 126.73 | 0.3843 | 882.0 | 664.2 | |
| 0.00 | 2.18 | 0.00 | 1.16 | -7.19 | 156.21 | -18.13 | 123.85 | 0.3734 | -1064.0 | -764.5 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -6.38 | 156.15 | -18.20 | 121.91 | 0.3671 | -833.0 | -685.1 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -6.82 | 155.81 | -18.54 | 122.44 | 0.3757 | -802.0 | -700.0 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -6.33 | 155.63 | -18.71 | 121.08 | 0.3739 | -650.0 | -529.9 | |
| 6.62 | 12.52 | 3.55 | 6.72 | -7.49 | 155.42 | -18.92 | 123.38 | 0.3867 | -1047.4 | -747.2 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -6.37 | 155.37 | -18.97 | 120.81 | 0.3778 | -760.0 | -585.4 | |
| 1.45 | 3.18 | 0.78 | 1.71 | -7.56 | 154.96 | -19.38 | 122.91 | 0.3935 | -967.7 | -666.9 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -7.64 | 154.34 | -20.01 | 122.25 | 0.4026 | -844.0 | -632.0 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -7.33 | 154.35 | -19.99 | 121.60 | 0.3998 | -613.0 | -433.3 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -7.08 | 154.30 | -20.05 | 121.00 | 0.3985 | -823.0 | -657.3 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -7.72 | 154.04 | -20.31 | 122.01 | 0.4073 | -831.0 | -726.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
