SDO HMI 2013-07-22 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.55 | 115.71 | 18.59 | 60.66 | -8.39 | 159.28 | -13.41 | 135.38 | 0.3273 | 505.0 | 176.9 | |
|
previous
or next observation for the same group /

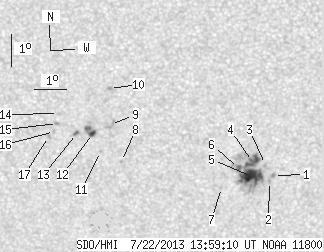

back to the solar disc SDO HMI 2013-07-22 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.80 | -8.76 | 161.18 | -11.51 | 140.18 | 0.3092 | 1021.0 | 858.6 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -8.95 | 161.05 | -11.64 | 140.25 | 0.3130 | 863.0 | 734.5 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -8.42 | 160.94 | -11.75 | 138.87 | 0.3075 | 729.0 | 605.1 | |
| 7.53 | 84.25 | 3.92 | 43.98 | -8.33 | 160.54 | -12.15 | 137.71 | 0.3109 | 1093.8 | 487.0 | |
| 22.22 | -4.00 | 11.60 | -4.00 | -8.80 | 160.49 | -12.20 | 138.61 | 0.3172 | 1117.0 | 999999 | |
| 1.63 | -4.00 | 0.85 | -4.00 | -8.56 | 160.09 | -12.60 | 137.16 | 0.3187 | 893.6 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -9.16 | 159.53 | -13.16 | 137.20 | 0.3323 | 495.0 | 343.9 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -8.42 | 156.37 | -16.32 | 129.47 | 0.3616 | 704.0 | 512.6 | |
| 0.00 | 4.81 | 0.00 | 2.54 | -7.27 | 156.07 | -16.62 | 126.40 | 0.3541 | -574.0 | -756.9 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -6.15 | 156.08 | -16.61 | 123.77 | 0.3434 | -980.0 | -803.1 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -8.12 | 155.71 | -16.98 | 127.72 | 0.3670 | 555.0 | 346.5 | |
| 3.17 | 8.52 | 1.69 | 4.53 | -7.56 | 155.48 | -17.21 | 126.11 | 0.3646 | -1015.2 | -899.7 | |
| 1.00 | 2.54 | 0.53 | 1.35 | -7.58 | 154.96 | -17.73 | 125.34 | 0.3716 | -925.7 | -764.5 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -6.97 | 154.41 | -18.28 | 123.15 | 0.3735 | -797.0 | -610.6 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -7.28 | 154.36 | -18.33 | 123.78 | 0.3769 | -861.0 | -607.6 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -7.53 | 154.25 | -18.44 | 124.18 | 0.3806 | -678.0 | -602.5 | |
| 0.00 | 2.09 | 0.00 | 1.12 | -7.70 | 154.05 | -18.64 | 124.24 | 0.3847 | -826.0 | -629.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
