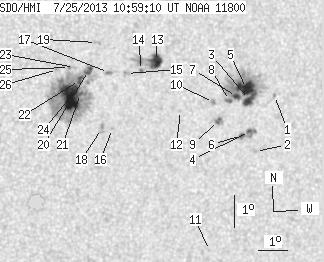

SDO HMI 2013-07-25 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.84 | 347.74 | 52.51 | 194.00 | -7.19 | 158.99 | 24.33 | 242.88 | 0.4603 | -13.8 | -27.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-07-25 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.68 | -7.46 | 163.40 | 28.75 | 246.32 | 0.5228 | -185.0 | -203.8 | |
| 0.00 | 2.09 | 0.00 | 1.21 | -9.19 | 162.87 | 28.22 | 242.90 | 0.5264 | 620.0 | 506.7 | |
| 8.52 | 104.54 | 4.91 | 59.97 | -7.54 | 162.53 | 27.88 | 245.50 | 0.5114 | 773.7 | 510.4 | |
| 1.63 | 10.52 | 0.94 | 6.09 | -8.55 | 162.61 | 27.95 | 243.79 | 0.5187 | 827.5 | 696.5 | |
| 19.40 | -3.00 | 11.14 | -3.00 | -7.20 | 162.41 | 27.75 | 246.03 | 0.5076 | 1113.6 | 999999 | |
| 1.81 | -4.00 | 1.05 | -4.00 | -8.66 | 162.34 | 27.68 | 243.36 | 0.5159 | 935.8 | 999999 | |
| 3.45 | -3.00 | 1.97 | -3.00 | -7.43 | 162.07 | 27.42 | 245.34 | 0.5045 | 1045.4 | 999999 | |
| 1.54 | -3.00 | 0.88 | -3.00 | -7.54 | 161.84 | 27.19 | 244.94 | 0.5020 | 905.1 | 999999 | |
| 2.09 | 5.08 | 1.19 | 2.90 | -8.15 | 161.50 | 26.85 | 243.55 | 0.5013 | 893.7 | 669.9 | |
| 0.00 | 2.81 | 0.00 | 1.60 | -7.58 | 161.29 | 26.64 | 244.41 | 0.4947 | 1055.0 | 860.5 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -12.26 | 161.56 | 26.91 | 236.61 | 0.5317 | 655.0 | 453.5 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -7.78 | 160.17 | 25.52 | 243.05 | 0.4808 | 735.0 | 530.4 | |
| 11.79 | 26.57 | 6.56 | 14.76 | -6.22 | 159.24 | 24.58 | 245.22 | 0.4574 | 1010.4 | 591.0 | |
| 0.63 | 1.63 | 0.35 | 0.91 | -6.48 | 158.78 | 24.12 | 244.27 | 0.4527 | -416.1 | -256.1 | |
| 0.00 | 3.35 | 0.00 | 1.86 | -6.56 | 158.28 | 23.63 | 243.64 | 0.4462 | -668.0 | -376.3 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -8.26 | 157.90 | 23.25 | 239.89 | 0.4534 | -690.0 | -570.6 | |
| 0.36 | 2.72 | 0.20 | 1.50 | -6.50 | 157.68 | 23.02 | 243.14 | 0.4373 | -596.8 | -429.4 | |
| 0.00 | 4.17 | 0.00 | 2.31 | -8.24 | 157.54 | 22.88 | 239.52 | 0.4484 | -655.0 | -590.7 | |
| 0.00 | 2.54 | 0.00 | 1.39 | -5.55 | 157.24 | 22.58 | 244.68 | 0.4246 | 694.0 | 572.4 | |
| 3.45 | 172.91 | 1.89 | 94.60 | -6.41 | 157.01 | 22.35 | 242.63 | 0.4273 | -833.9 | -454.2 | |
| 1.36 | -20.00 | 0.75 | -20.00 | -7.12 | 156.77 | 22.12 | 240.91 | 0.4294 | -724.9 | 999999 | |
| 3.08 | -20.00 | 1.69 | -20.00 | -6.71 | 156.72 | 22.07 | 241.69 | 0.4256 | -953.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -6.30 | 156.54 | 21.88 | 242.35 | 0.4200 | -715.0 | -626.2 | |
| 34.73 | -20.00 | 18.99 | -20.00 | -7.20 | 156.45 | 21.79 | 240.37 | 0.4255 | -1249.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -6.30 | 156.37 | 21.72 | 242.18 | 0.4176 | -679.0 | -699.9 | |
| 0.00 | 2.18 | 0.00 | 1.18 | -6.35 | 155.98 | 21.33 | 241.64 | 0.4125 | -853.0 | -676.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
