SDO HMI 2013-07-26 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.72 | 394.03 | 59.72 | 240.22 | -7.02 | 158.16 | 33.45 | 249.94 | 0.5840 | -106.1 | -92.7 | |
|
previous
or next observation for the same group /

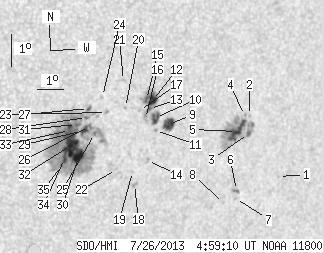

back to the solar disc SDO HMI 2013-07-26 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.73 | -8.59 | 164.47 | 39.76 | 250.85 | 0.6716 | 533.0 | 363.9 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -6.60 | 163.10 | 38.39 | 253.13 | 0.6469 | 451.0 | 443.2 | |
| 1.63 | 60.47 | 1.06 | 39.01 | -7.16 | 163.12 | 38.40 | 252.31 | 0.6492 | 597.0 | 548.8 | |
| 0.00 | 1.54 | 0.00 | 1.00 | -6.59 | 162.91 | 38.19 | 253.06 | 0.6443 | 506.0 | 506.4 | |
| 13.51 | -3.00 | 8.72 | -3.00 | -7.07 | 162.64 | 37.93 | 252.22 | 0.6428 | 967.6 | 999999 | |
| 0.00 | 2.81 | 0.00 | 1.83 | -8.93 | 162.84 | 38.13 | 249.59 | 0.6531 | 821.0 | 649.9 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -9.18 | 162.83 | 38.12 | 249.23 | 0.6541 | 574.0 | 526.2 | |
| 0.00 | 0.82 | 0.00 | 0.53 | -9.31 | 162.38 | 37.67 | 248.81 | 0.6490 | 618.0 | 482.8 | |
| 9.70 | 12.33 | 6.04 | 7.67 | -6.70 | 160.00 | 35.29 | 251.52 | 0.6071 | 788.7 | 491.4 | |
| 6.16 | 35.54 | 3.81 | 21.87 | -6.46 | 159.49 | 34.78 | 251.65 | 0.5994 | 919.5 | 707.4 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -6.86 | 159.53 | 34.81 | 251.02 | 0.6016 | 817.0 | 719.6 | |
| 6.80 | -10.00 | 4.18 | -10.00 | -5.92 | 159.34 | 34.63 | 252.43 | 0.5951 | 945.4 | 999999 | |
| 1.09 | -10.00 | 0.67 | -10.00 | -6.16 | 159.25 | 34.53 | 251.99 | 0.5948 | 992.9 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.52 | -7.79 | 159.31 | 34.59 | 249.45 | 0.6030 | 532.0 | 431.6 | |
| 1.81 | -10.00 | 1.11 | -10.00 | -5.88 | 159.12 | 34.40 | 252.39 | 0.5918 | 1033.3 | 999999 | |
| 0.00 | 3.17 | 0.00 | 1.95 | -6.47 | 159.12 | 34.41 | 251.44 | 0.5945 | 577.0 | 573.9 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -6.21 | 158.88 | 34.16 | 251.73 | 0.5901 | 568.0 | 447.0 | |
| 0.00 | 2.81 | 0.00 | 1.74 | -8.51 | 158.89 | 34.18 | 248.07 | 0.6011 | 893.0 | 701.2 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -8.10 | 158.78 | 34.06 | 248.65 | 0.5976 | -550.0 | -443.3 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -6.08 | 158.35 | 33.64 | 251.65 | 0.5825 | -387.0 | -200.5 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -5.24 | 158.22 | 33.51 | 252.98 | 0.5771 | 199.0 | 202.6 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -8.01 | 158.18 | 33.46 | 248.45 | 0.5892 | -683.0 | -588.9 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -6.20 | 157.66 | 32.95 | 251.08 | 0.5737 | -200.0 | -110.4 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -5.70 | 157.48 | 32.77 | 251.83 | 0.5690 | -613.0 | -480.6 | |
| 0.63 | 260.01 | 0.38 | 155.59 | -6.84 | 157.27 | 32.56 | 249.81 | 0.5714 | -422.9 | -395.3 | |
| 1.09 | -25.00 | 0.65 | -25.00 | -6.61 | 157.07 | 32.36 | 250.07 | 0.5677 | -577.0 | 999999 | |
| 1.00 | -25.00 | 0.60 | -25.00 | -6.04 | 157.00 | 32.28 | 250.97 | 0.5640 | -510.2 | 999999 | |
| 0.63 | -25.00 | 0.38 | -25.00 | -6.32 | 156.94 | 32.23 | 250.48 | 0.5645 | -685.7 | 999999 | |
| 4.26 | -25.00 | 2.56 | -25.00 | -6.72 | 156.90 | 32.18 | 249.78 | 0.5659 | -713.0 | 999999 | |
| 11.51 | -25.00 | 6.92 | -25.00 | -7.52 | 156.74 | 32.03 | 248.35 | 0.5678 | -963.4 | 999999 | |
| 1.72 | -25.00 | 1.03 | -25.00 | -6.52 | 156.59 | 31.88 | 249.93 | 0.5608 | -808.3 | 999999 | |
| 25.11 | -25.00 | 15.01 | -25.00 | -7.16 | 156.42 | 31.71 | 248.75 | 0.5617 | -1158.9 | 999999 | |
| 6.71 | -25.00 | 4.00 | -25.00 | -6.69 | 156.35 | 31.64 | 249.49 | 0.5584 | -1092.7 | 999999 | |
| 3.54 | -25.00 | 2.11 | -25.00 | -7.56 | 156.24 | 31.53 | 247.97 | 0.5613 | -873.8 | 999999 | |
| 0.82 | -25.00 | 0.49 | -25.00 | -7.77 | 156.15 | 31.43 | 247.56 | 0.5612 | -716.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
