SDO HMI 2013-07-26 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 101.01 | 388.96 | 62.25 | 238.80 | -6.98 | 158.20 | 34.03 | 250.35 | 0.5916 | -30.4 | -95.7 | |
|
previous
or next observation for the same group /

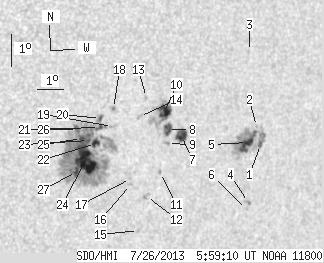

back to the solar disc SDO HMI 2013-07-26 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.81 | 59.84 | 1.19 | 38.91 | -7.17 | 163.16 | 39.00 | 252.56 | 0.6567 | 588.2 | 513.3 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -6.60 | 162.95 | 38.78 | 253.31 | 0.6519 | 566.0 | 507.6 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -4.25 | 162.50 | 38.33 | 256.66 | 0.6379 | 717.0 | 618.0 | |
| 0.00 | 2.27 | 0.00 | 1.49 | -8.96 | 162.89 | 38.72 | 249.83 | 0.6606 | 785.0 | 725.4 | |
| 15.59 | -1.00 | 10.14 | -1.00 | -7.07 | 162.64 | 38.47 | 252.47 | 0.6498 | 963.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -9.18 | 162.84 | 38.67 | 249.50 | 0.6609 | 600.0 | 545.2 | |
| 9.52 | 12.33 | 5.97 | 7.73 | -6.71 | 160.06 | 35.89 | 251.82 | 0.6151 | 791.3 | 483.5 | |
| 6.53 | 49.23 | 4.06 | 30.50 | -6.49 | 159.51 | 35.34 | 251.88 | 0.6070 | 883.8 | 591.4 | |
| 0.00 | 1.99 | 0.00 | 1.24 | -6.92 | 159.55 | 35.38 | 251.22 | 0.6093 | 866.0 | 661.5 | |
| 12.97 | -8.00 | 8.03 | -8.00 | -5.92 | 159.36 | 35.19 | 252.71 | 0.6025 | 994.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -7.82 | 159.37 | 35.20 | 249.73 | 0.6110 | 666.0 | 483.9 | |
| 0.00 | 3.17 | 0.00 | 1.98 | -8.54 | 158.91 | 34.74 | 248.35 | 0.6086 | 818.0 | 732.8 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -5.45 | 158.65 | 34.48 | 253.12 | 0.5912 | 827.0 | 675.4 | |
| 0.00 | 2.36 | 0.00 | 1.44 | -6.02 | 158.43 | 34.26 | 252.08 | 0.5906 | 140.0 | 25.5 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -9.60 | 158.73 | 34.56 | 246.63 | 0.6115 | 573.0 | 465.5 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -8.13 | 158.27 | 34.10 | 248.62 | 0.5983 | -576.0 | -476.8 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -7.94 | 158.25 | 34.09 | 248.91 | 0.5971 | -644.0 | -573.1 | |
| 0.00 | 1.81 | 0.00 | 1.10 | -5.72 | 157.45 | 33.28 | 252.06 | 0.5761 | -722.0 | -516.8 | |
| 0.00 | 2.09 | 0.00 | 1.26 | -6.28 | 157.45 | 33.28 | 251.13 | 0.5786 | -233.0 | -115.2 | |
| 1.00 | 245.61 | 0.60 | 147.95 | -6.01 | 156.99 | 32.83 | 251.33 | 0.5712 | -545.8 | -407.6 | |
| 2.09 | -20.00 | 1.26 | -20.00 | -6.29 | 156.98 | 32.81 | 250.86 | 0.5722 | -700.0 | 999999 | |
| 4.71 | -20.00 | 2.84 | -20.00 | -6.78 | 156.86 | 32.70 | 249.98 | 0.5731 | -756.8 | 999999 | |
| 1.36 | -20.00 | 0.82 | -20.00 | -6.67 | 156.60 | 32.43 | 250.01 | 0.5690 | -825.9 | 999999 | |
| 37.08 | -20.00 | 22.34 | -20.00 | -7.26 | 156.54 | 32.37 | 249.00 | 0.5711 | -1106.0 | 999999 | |
| 2.36 | -20.00 | 1.41 | -20.00 | -6.60 | 156.34 | 32.18 | 249.98 | 0.5651 | -1106.1 | 999999 | |
| 2.36 | -20.00 | 1.41 | -20.00 | -6.31 | 156.18 | 32.01 | 250.37 | 0.5615 | -930.8 | 999999 | |
| 3.63 | -20.00 | 2.18 | -20.00 | -7.62 | 156.24 | 32.07 | 248.22 | 0.5689 | -850.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
