SDO HMI 2013-07-26 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.17 | 415.28 | 67.32 | 259.37 | -6.93 | 157.96 | 35.44 | 251.18 | 0.6099 | -55.5 | -131.4 | |
|
previous
or next observation for the same group /

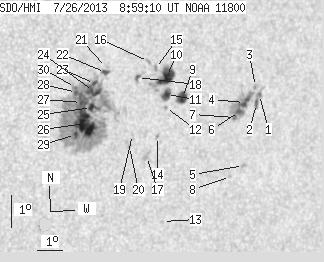

back to the solar disc SDO HMI 2013-07-26 08:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.73 | 48.60 | 0.49 | 32.38 | -6.81 | 163.29 | 40.77 | 253.82 | 0.6774 | 576.8 | 590.8 | |
| 1.99 | -1.00 | 1.34 | -1.00 | -7.08 | 163.20 | 40.67 | 253.39 | 0.6772 | 541.7 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.58 | -6.55 | 163.10 | 40.58 | 254.12 | 0.6742 | 588.0 | 470.9 | |
| 6.62 | -1.00 | 4.41 | -1.00 | -7.02 | 162.70 | 40.18 | 253.28 | 0.6709 | 940.6 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.65 | -9.00 | 162.90 | 40.37 | 250.55 | 0.6808 | 797.0 | 595.2 | |
| 3.90 | -1.00 | 2.59 | -1.00 | -7.29 | 162.53 | 40.01 | 252.82 | 0.6698 | 937.3 | 999999 | |
| 1.27 | -1.00 | 0.84 | -1.00 | -7.46 | 162.35 | 39.83 | 252.49 | 0.6682 | 791.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -9.31 | 162.41 | 39.89 | 249.89 | 0.6763 | 682.0 | 555.5 | |
| 8.70 | 11.24 | 5.59 | 7.22 | -6.71 | 160.22 | 37.70 | 252.66 | 0.6385 | 787.8 | 472.0 | |
| 17.50 | 30.46 | 11.10 | 19.31 | -6.02 | 159.54 | 37.02 | 253.40 | 0.6271 | 890.1 | 625.5 | |
| 6.71 | 9.25 | 4.27 | 5.89 | -6.58 | 159.59 | 37.07 | 252.56 | 0.6299 | 901.4 | 636.5 | |
| 0.00 | 1.36 | 0.00 | 0.87 | -6.99 | 159.59 | 37.06 | 251.95 | 0.6315 | 843.0 | 698.7 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -10.58 | 159.89 | 37.37 | 246.81 | 0.6513 | 611.0 | 473.8 | |
| 0.00 | 1.72 | 0.00 | 1.10 | -7.88 | 159.37 | 36.84 | 250.50 | 0.6324 | 633.0 | 477.3 | |
| 0.00 | 2.27 | 0.00 | 1.43 | -5.75 | 159.10 | 36.58 | 253.63 | 0.6202 | 716.0 | 598.6 | |
| 0.00 | 2.27 | 0.00 | 1.42 | -5.51 | 158.82 | 36.29 | 253.86 | 0.6156 | 698.0 | 619.6 | |
| 0.00 | 4.99 | 0.00 | 3.18 | -8.48 | 159.01 | 36.48 | 249.40 | 0.6305 | 863.0 | 696.8 | |
| 1.27 | 4.81 | 0.79 | 3.01 | -5.99 | 158.43 | 35.91 | 252.94 | 0.6124 | -542.8 | -126.5 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -7.76 | 158.40 | 35.87 | 250.18 | 0.6195 | -567.0 | -472.2 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -8.13 | 158.32 | 35.80 | 249.57 | 0.6201 | -569.0 | -453.3 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -5.61 | 157.24 | 34.72 | 252.97 | 0.5950 | -274.0 | -257.0 | |
| 2.45 | 4.35 | 1.51 | 2.68 | -5.76 | 157.22 | 34.69 | 252.71 | 0.5953 | -685.6 | -416.6 | |
| 2.18 | 284.06 | 1.33 | 174.40 | -6.08 | 156.83 | 34.30 | 252.00 | 0.5915 | -609.3 | -367.9 | |
| 9.52 | -23.00 | 5.84 | -23.00 | -6.33 | 156.81 | 34.29 | 251.59 | 0.5923 | -754.2 | 999999 | |
| 4.08 | -23.00 | 2.51 | -23.00 | -6.83 | 156.77 | 34.25 | 250.77 | 0.5940 | -798.2 | 999999 | |
| 34.00 | -23.00 | 20.89 | -23.00 | -7.31 | 156.55 | 34.03 | 249.88 | 0.5934 | -1106.6 | 999999 | |
| 1.54 | -23.00 | 0.94 | -23.00 | -6.65 | 156.39 | 33.87 | 250.85 | 0.5881 | -1175.1 | 999999 | |
| 1.99 | -23.00 | 1.21 | -23.00 | -6.33 | 156.18 | 33.66 | 251.26 | 0.5839 | -1045.7 | 999999 | |
| 2.36 | -23.00 | 1.45 | -23.00 | -7.64 | 156.25 | 33.73 | 249.18 | 0.5909 | -795.1 | 999999 | |
| 0.36 | -23.00 | 0.22 | -23.00 | -6.17 | 156.13 | 33.61 | 251.49 | 0.5825 | -961.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
