SDO HMI 2013-08-17 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.72 | 191.00 | 27.17 | 169.60 | -7.13 | 139.42 | -54.39 | 103.33 | 0.8312 | 778.4 | 208.4 | |
|
previous
or next observation for the same group /

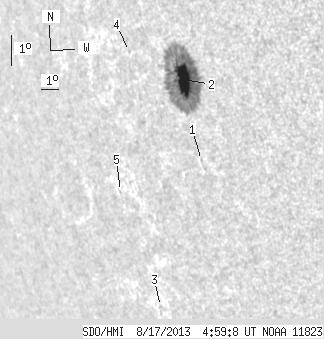

back to the solar disc SDO HMI 2013-08-17 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.80 | -9.54 | 139.92 | -53.90 | 106.30 | 0.8322 | 313.0 | 256.3 | |
| 30.72 | 187.40 | 27.17 | 166.08 | -7.05 | 139.48 | -54.33 | 103.26 | 0.8305 | 896.9 | 215.2 | |
| 0.00 | 0.90 | 0.00 | 0.93 | -14.57 | 136.02 | -57.79 | 110.76 | 0.8777 | -303.0 | -336.3 | |
| 0.00 | 0.72 | 0.00 | 0.68 | -6.46 | 136.63 | -57.18 | 101.84 | 0.8552 | 205.0 | 244.9 | |
| 0.00 | 1.08 | 0.00 | 1.11 | -11.01 | 134.96 | -58.85 | 106.54 | 0.8782 | -322.0 | -245.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
