SDO HMI 2013-08-17 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.49 | 196.88 | 28.72 | 159.69 | -7.08 | 139.43 | -50.55 | 104.37 | 0.7933 | 738.6 | 208.0 | |
|
previous
or next observation for the same group /

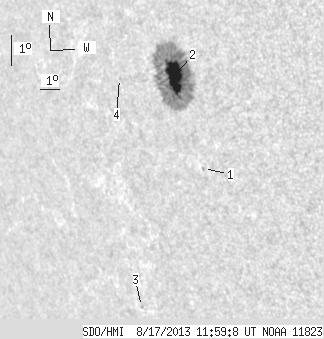

back to the solar disc SDO HMI 2013-08-17 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 1.09 | -9.84 | 140.33 | -49.64 | 108.05 | 0.7919 | 471.0 | 416.9 | |
| 35.49 | 194.09 | 28.72 | 157.29 | -7.01 | 139.45 | -50.53 | 104.30 | 0.7929 | 801.0 | 210.6 | |
| 0.00 | 1.08 | 0.00 | 1.00 | -14.66 | 135.83 | -54.14 | 112.07 | 0.8482 | -409.0 | -393.5 | |
| 0.00 | 0.36 | 0.00 | 0.31 | -7.36 | 136.64 | -53.33 | 103.90 | 0.8216 | 362.0 | 330.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
