SDO HMI 2013-08-18 01:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.99 | 238.77 | 26.58 | 167.29 | -7.07 | 139.39 | -42.85 | 107.15 | 0.7086 | 858.4 | 305.3 | |
|
previous
or next observation for the same group /

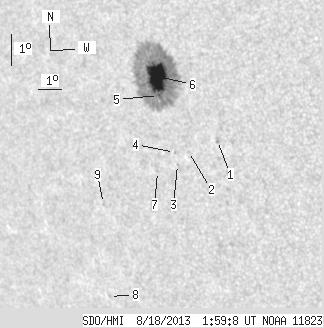

back to the solar disc SDO HMI 2013-08-18 01:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.25 | 0.00 | 1.53 | -8.78 | 141.64 | -40.60 | 110.49 | 0.6888 | 739.0 | 628.4 | |
| 0.00 | 0.90 | 0.00 | 0.63 | -9.22 | 140.39 | -41.85 | 110.49 | 0.7053 | 353.0 | 246.0 | |
| 0.00 | 0.72 | 0.00 | 0.51 | -9.67 | 139.86 | -42.38 | 110.85 | 0.7133 | 387.0 | 293.4 | |
| 0.00 | 0.45 | 0.00 | 0.32 | -9.30 | 139.80 | -42.44 | 110.32 | 0.7125 | 536.0 | 434.0 | |
| 0.63 | 231.66 | 0.44 | 162.20 | -7.55 | 139.37 | -42.87 | 107.79 | 0.7106 | 752.0 | 312.9 | |
| 37.36 | -5.00 | 26.14 | -5.00 | -6.95 | 139.40 | -42.84 | 107.00 | 0.7081 | 1076.8 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.45 | -9.97 | 138.97 | -43.27 | 110.82 | 0.7245 | -585.0 | -477.0 | |
| 0.00 | 0.63 | 0.00 | 0.49 | -14.21 | 135.95 | -46.29 | 114.75 | 0.7739 | -482.0 | -420.4 | |
| 0.00 | 1.53 | 0.00 | 1.16 | -11.20 | 136.39 | -45.85 | 111.25 | 0.7574 | -495.0 | -407.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
