SDO HMI 2013-08-18 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.89 | 242.09 | 27.41 | 162.58 | -7.08 | 139.31 | -40.19 | 108.31 | 0.6769 | 853.9 | 317.0 | |
|
previous
or next observation for the same group /

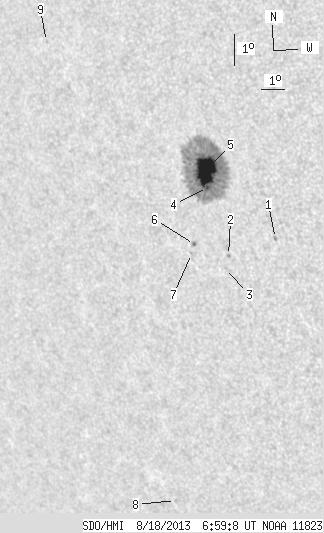

back to the solar disc SDO HMI 2013-08-18 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.94 | -8.90 | 141.89 | -37.61 | 112.21 | 0.6535 | 704.0 | 574.8 | |
| 0.00 | 1.35 | 0.00 | 0.91 | -9.58 | 139.95 | -39.55 | 112.12 | 0.6801 | 728.0 | 593.2 | |
| 0.00 | 0.63 | 0.00 | 0.43 | -10.00 | 139.76 | -39.73 | 112.60 | 0.6842 | 495.0 | 398.0 | |
| 1.62 | 233.72 | 1.09 | 156.74 | -7.49 | 139.37 | -40.13 | 108.93 | 0.6778 | 852.9 | 327.1 | |
| 38.55 | -4.00 | 25.83 | -4.00 | -6.96 | 139.35 | -40.15 | 108.17 | 0.6759 | 1102.7 | 999999 | |
| 0.72 | 1.89 | 0.49 | 1.30 | -9.34 | 138.61 | -40.89 | 111.11 | 0.6947 | -775.8 | -625.2 | |
| 0.00 | 0.72 | 0.00 | 0.50 | -9.63 | 138.44 | -41.06 | 111.43 | 0.6980 | -681.0 | -541.6 | |
| 0.00 | 1.08 | 0.00 | 0.83 | -17.80 | 135.91 | -43.59 | 120.40 | 0.7634 | 465.0 | 355.7 | |
| 0.00 | 1.26 | 0.00 | 0.93 | -3.49 | 132.96 | -46.54 | 101.06 | 0.7405 | -584.0 | -427.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
