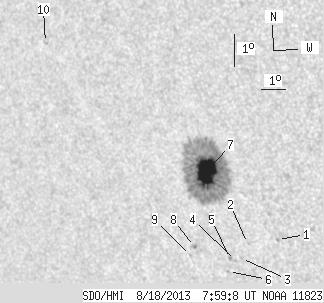

SDO HMI 2013-08-18 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.91 | 246.86 | 25.86 | 164.34 | -7.01 | 139.33 | -39.62 | 108.49 | 0.6698 | 809.6 | 304.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-08-18 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.76 | -8.89 | 141.92 | -37.03 | 112.53 | 0.6464 | 765.0 | 609.5 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -9.10 | 140.73 | -38.22 | 112.17 | 0.6619 | -634.0 | -564.8 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -9.60 | 140.43 | -38.52 | 112.70 | 0.6679 | -463.0 | -227.2 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -9.68 | 140.18 | -38.77 | 112.67 | 0.6713 | 559.0 | 460.0 | |
| 0.00 | 1.62 | 0.00 | 1.08 | -9.63 | 139.99 | -38.96 | 112.50 | 0.6733 | 813.0 | 637.1 | |
| 0.00 | 0.63 | 0.00 | 0.42 | -10.05 | 139.85 | -39.10 | 113.01 | 0.6770 | 627.0 | 528.0 | |
| 38.91 | 236.78 | 25.86 | 157.48 | -6.95 | 139.36 | -39.59 | 108.42 | 0.6691 | 1097.3 | 323.3 | |
| 0.00 | 1.80 | 0.00 | 1.23 | -9.36 | 138.58 | -40.37 | 111.40 | 0.6887 | -815.0 | -709.7 | |
| 0.00 | 0.90 | 0.00 | 0.62 | -9.66 | 138.38 | -40.57 | 111.70 | 0.6924 | -441.0 | -424.8 | |
| 0.00 | 1.80 | 0.00 | 1.31 | -3.48 | 132.95 | -46.01 | 101.20 | 0.7343 | -565.0 | -520.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
