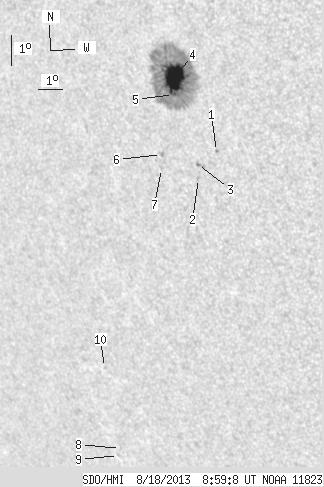

SDO HMI 2013-08-18 08:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.53 | 249.28 | 26.73 | 164.86 | -7.20 | 139.31 | -39.09 | 108.99 | 0.6639 | 827.2 | 302.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-08-18 08:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.77 | -9.16 | 140.76 | -37.64 | 112.56 | 0.6551 | -697.0 | -592.2 | |
| 0.00 | 1.53 | 0.00 | 1.02 | -10.07 | 139.94 | -38.47 | 113.38 | 0.6696 | 316.0 | 342.6 | |
| 0.36 | 3.06 | 0.24 | 2.03 | -9.63 | 139.96 | -38.45 | 112.78 | 0.6671 | 716.0 | 570.2 | |
| 38.46 | 238.12 | 25.36 | 157.12 | -6.94 | 139.37 | -39.03 | 108.67 | 0.6621 | 1082.3 | 315.6 | |
| 1.71 | -4.00 | 1.13 | -4.00 | -7.48 | 139.28 | -39.13 | 109.39 | 0.6656 | 708.2 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.97 | -9.42 | 138.55 | -39.85 | 111.74 | 0.6828 | -861.0 | -761.1 | |
| 0.00 | 1.26 | 0.00 | 0.86 | -9.86 | 138.49 | -39.91 | 112.32 | 0.6856 | -529.0 | -362.0 | |
| 0.00 | 0.90 | 0.00 | 0.70 | -19.26 | 134.52 | -43.88 | 121.95 | 0.7734 | 562.0 | 429.5 | |
| 0.00 | 0.99 | 0.00 | 0.78 | -19.51 | 134.35 | -44.06 | 122.14 | 0.7763 | 348.0 | 316.7 | |
| 0.00 | 0.81 | 0.00 | 0.61 | -16.57 | 134.66 | -43.74 | 118.85 | 0.7589 | 454.0 | 334.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
