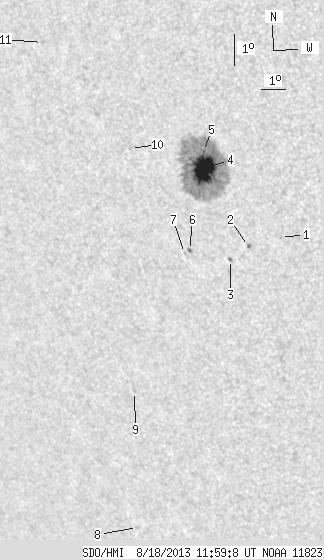

SDO HMI 2013-08-18 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.95 | 257.04 | 27.05 | 166.11 | -7.07 | 139.25 | -37.51 | 109.59 | 0.6437 | 656.5 | 283.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-08-18 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.57 | -8.88 | 142.06 | -34.70 | 113.91 | 0.6175 | 724.0 | 631.0 | |
| 0.54 | 1.44 | 0.35 | 0.92 | -9.25 | 140.81 | -35.95 | 113.68 | 0.6350 | -667.3 | -600.1 | |
| 0.54 | 1.26 | 0.35 | 0.82 | -9.72 | 140.06 | -36.70 | 113.90 | 0.6465 | 597.0 | 592.4 | |
| 38.98 | 245.52 | 25.12 | 158.30 | -6.92 | 139.33 | -37.42 | 109.43 | 0.6419 | 1005.6 | 306.8 | |
| 1.17 | -4.00 | 0.75 | -4.00 | -6.38 | 139.38 | -37.37 | 108.67 | 0.6390 | 849.9 | 999999 | |
| 0.72 | 1.80 | 0.48 | 1.19 | -9.55 | 138.49 | -38.27 | 112.76 | 0.6646 | -743.2 | -645.1 | |
| 0.00 | 1.26 | 0.00 | 0.84 | -9.66 | 138.27 | -38.48 | 112.80 | 0.6677 | -602.0 | -462.2 | |
| 0.00 | 1.53 | 0.00 | 1.16 | -18.84 | 134.31 | -42.45 | 122.26 | 0.7577 | 490.0 | 394.0 | |
| 0.00 | 1.08 | 0.00 | 0.77 | -14.28 | 135.41 | -41.35 | 117.34 | 0.7230 | -422.0 | -381.0 | |
| 0.00 | 1.08 | 0.00 | 0.72 | -6.51 | 136.50 | -40.25 | 107.48 | 0.6754 | -563.0 | -543.9 | |
| 0.00 | 1.17 | 0.00 | 0.82 | -3.49 | 133.13 | -43.63 | 101.97 | 0.7063 | -664.0 | -525.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
