SDO HMI 2013-08-19 05:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.77 | 316.17 | 24.12 | 183.32 | -7.36 | 138.94 | -27.89 | 116.45 | 0.5206 | 447.6 | 306.6 | |
|
previous
or next observation for the same group /

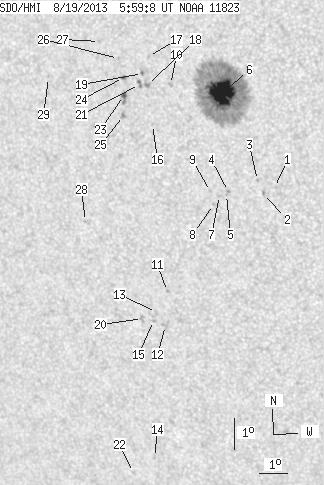

back to the solar disc SDO HMI 2013-08-19 05:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.31 | -9.75 | 140.93 | -25.90 | 122.46 | 0.5122 | 743.0 | 715.2 | |
| 0.00 | 1.53 | 0.00 | 0.89 | -9.97 | 140.54 | -26.29 | 122.41 | 0.5188 | 821.0 | 611.5 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -9.56 | 140.37 | -26.46 | 121.58 | 0.5179 | 775.0 | 637.4 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -9.97 | 139.33 | -27.50 | 121.24 | 0.5341 | -932.0 | -783.6 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -10.07 | 139.25 | -27.58 | 121.33 | 0.5358 | -772.0 | -704.5 | |
| 38.98 | 268.02 | 22.45 | 154.35 | -6.86 | 139.36 | -27.47 | 116.01 | 0.5116 | 1291.4 | 417.3 | |
| 0.00 | 1.44 | 0.00 | 0.85 | -10.11 | 139.00 | -27.83 | 121.17 | 0.5393 | -691.0 | -596.7 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -10.41 | 138.76 | -28.07 | 121.43 | 0.5445 | -780.0 | -574.6 | |
| 0.00 | 1.26 | 0.00 | 0.74 | -10.00 | 138.69 | -28.14 | 120.72 | 0.5423 | -638.0 | -484.7 | |
| 0.00 | 1.98 | 0.00 | 1.16 | -6.71 | 137.57 | -29.26 | 114.30 | 0.5348 | 753.0 | 557.8 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -13.31 | 136.78 | -30.05 | 124.02 | 0.5901 | -711.0 | -591.3 | |
| 0.00 | 3.87 | 0.00 | 2.39 | -14.43 | 136.55 | -30.29 | 125.39 | 0.6013 | -778.0 | -674.0 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -14.02 | 136.28 | -30.55 | 124.59 | 0.6012 | -544.0 | -511.2 | |
| 0.00 | 1.35 | 0.00 | 0.88 | -18.85 | 135.33 | -31.50 | 130.14 | 0.6490 | 648.0 | 580.7 | |
| 0.00 | 1.53 | 0.00 | 0.95 | -14.29 | 136.13 | -30.70 | 124.83 | 0.6050 | -641.0 | -589.4 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -8.00 | 136.83 | -30.00 | 115.90 | 0.5525 | -645.0 | -518.8 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -5.88 | 136.85 | -29.98 | 112.35 | 0.5396 | -729.0 | -567.9 | |
| 0.00 | 3.24 | 0.00 | 1.91 | -6.76 | 136.75 | -30.08 | 113.77 | 0.5459 | 793.0 | 598.9 | |
| 0.45 | 1.98 | 0.27 | 1.17 | -6.43 | 136.60 | -30.23 | 113.09 | 0.5460 | 671.6 | 553.3 | |
| 0.00 | 3.15 | 0.00 | 1.96 | -14.25 | 135.73 | -31.10 | 124.44 | 0.6092 | -566.0 | -514.2 | |
| 0.00 | 3.06 | 0.00 | 1.81 | -6.78 | 136.47 | -30.36 | 113.59 | 0.5498 | 428.0 | 395.3 | |
| 0.00 | 1.53 | 0.00 | 1.01 | -19.42 | 134.41 | -32.42 | 130.04 | 0.6627 | 609.0 | 448.2 | |
| 1.44 | 5.13 | 0.86 | 3.06 | -7.16 | 135.87 | -30.96 | 113.79 | 0.5600 | -914.6 | -770.6 | |
| 0.90 | 2.25 | 0.54 | 1.34 | -6.59 | 135.91 | -30.92 | 112.89 | 0.5562 | -871.4 | -705.4 | |
| 0.00 | 3.06 | 0.00 | 1.83 | -7.78 | 135.82 | -31.01 | 114.78 | 0.5644 | -926.0 | -749.7 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -6.01 | 135.77 | -31.06 | 111.82 | 0.5548 | -684.0 | -523.5 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -5.52 | 135.12 | -31.71 | 110.58 | 0.5609 | -654.0 | -581.2 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -11.24 | 134.07 | -32.76 | 118.80 | 0.6079 | -614.0 | -566.1 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -6.77 | 133.18 | -33.65 | 111.38 | 0.5931 | -419.0 | -399.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
