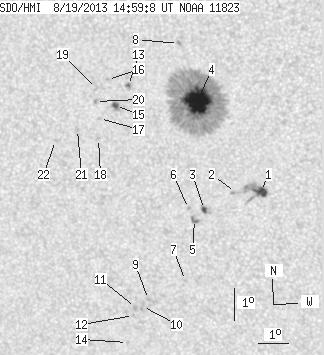

SDO HMI 2013-08-19 14:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.19 | 369.38 | 33.31 | 204.98 | -7.32 | 139.23 | -22.65 | 121.61 | 0.4508 | 491.9 | 243.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-08-19 14:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.37 | 23.66 | 4.62 | 13.09 | -9.57 | 141.24 | -20.64 | 128.34 | 0.4450 | 839.5 | 320.8 | |
| 0.00 | 3.51 | 0.00 | 1.95 | -9.64 | 140.42 | -21.47 | 127.35 | 0.4558 | -361.0 | -346.4 | |
| 2.25 | 6.03 | 1.26 | 3.39 | -10.22 | 139.34 | -22.54 | 127.01 | 0.4744 | -938.7 | -693.4 | |
| 46.15 | 300.81 | 25.50 | 166.37 | -6.80 | 139.33 | -22.55 | 120.76 | 0.4450 | 1246.9 | 347.5 | |
| 0.00 | 5.04 | 0.00 | 2.84 | -10.56 | 138.98 | -22.90 | 127.13 | 0.4818 | -679.0 | -681.9 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -10.22 | 138.81 | -23.08 | 126.35 | 0.4809 | -771.0 | -673.1 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -12.53 | 138.50 | -23.38 | 129.73 | 0.5057 | -663.0 | -570.6 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -5.05 | 138.78 | -23.10 | 116.68 | 0.4393 | -905.0 | -765.4 | |
| 0.00 | 1.44 | 0.00 | 0.84 | -13.20 | 137.17 | -24.71 | 129.21 | 0.5273 | -783.0 | -601.8 | |
| 0.00 | 2.61 | 0.00 | 1.52 | -13.44 | 136.94 | -24.95 | 129.30 | 0.5322 | -825.0 | -641.8 | |
| 0.00 | 2.52 | 0.00 | 1.48 | -13.49 | 136.69 | -25.19 | 129.09 | 0.5354 | -787.0 | -684.4 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -13.75 | 136.59 | -25.29 | 129.37 | 0.5389 | -760.0 | -607.8 | |
| 0.90 | 3.24 | 0.51 | 1.82 | -6.44 | 137.04 | -24.84 | 117.65 | 0.4731 | 828.8 | 625.3 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -14.64 | 136.27 | -25.61 | 130.31 | 0.5506 | -701.0 | -536.5 | |
| 2.52 | 5.40 | 1.42 | 3.05 | -7.09 | 136.57 | -25.31 | 118.38 | 0.4842 | 670.2 | 455.8 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -6.29 | 136.34 | -25.54 | 116.70 | 0.4816 | 737.0 | 556.0 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -7.52 | 136.00 | -25.89 | 118.62 | 0.4950 | -798.0 | -652.7 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -8.15 | 135.92 | -25.96 | 119.65 | 0.5007 | -817.0 | -515.1 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -6.59 | 135.95 | -25.93 | 116.89 | 0.4890 | -758.0 | -626.9 | |
| 0.00 | 1.89 | 0.00 | 1.07 | -7.00 | 135.90 | -25.99 | 117.58 | 0.4926 | -895.0 | -766.5 | |
| 0.00 | 1.71 | 0.00 | 0.98 | -7.91 | 135.22 | -26.66 | 118.56 | 0.5081 | -664.0 | -545.4 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -8.30 | 134.43 | -27.45 | 118.51 | 0.5212 | -689.0 | -593.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
