SDO HMI 2013-08-19 17:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.06 | 353.60 | 33.44 | 193.92 | -7.31 | 139.20 | -21.02 | 123.55 | 0.4294 | 630.9 | 336.1 | |
|
previous
or next observation for the same group /

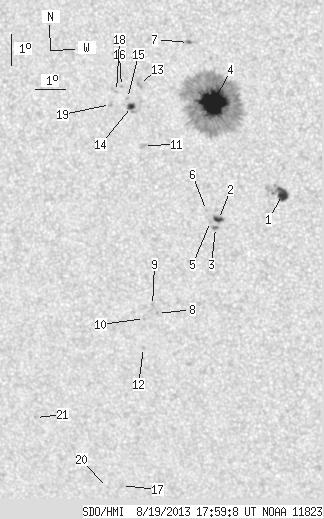

back to the solar disc SDO HMI 2013-08-19 17:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.26 | 21.31 | 5.06 | 11.65 | -9.61 | 141.42 | -18.80 | 131.08 | 0.4233 | 999.3 | 381.5 | |
| 3.51 | 5.13 | 1.95 | 2.85 | -10.49 | 139.27 | -20.96 | 129.53 | 0.4578 | -1043.5 | -810.0 | |
| 0.81 | 2.07 | 0.45 | 1.15 | -10.75 | 139.15 | -21.08 | 129.81 | 0.4618 | -825.8 | -673.1 | |
| 43.79 | 292.88 | 23.93 | 160.08 | -6.81 | 139.32 | -20.90 | 122.79 | 0.4232 | 1334.0 | 396.8 | |
| 0.00 | 1.62 | 0.00 | 0.90 | -10.56 | 139.00 | -21.23 | 129.29 | 0.4618 | -641.0 | -527.9 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -10.22 | 138.89 | -21.33 | 128.56 | 0.4598 | -825.0 | -693.4 | |
| 0.63 | 3.42 | 0.34 | 1.86 | -4.97 | 138.58 | -21.64 | 118.13 | 0.4184 | -725.6 | -489.9 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -13.61 | 136.94 | -23.28 | 131.51 | 0.5150 | -832.0 | -713.5 | |
| 0.00 | 1.71 | 0.00 | 0.99 | -13.35 | 136.80 | -23.42 | 130.96 | 0.5142 | -712.0 | -608.2 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -13.79 | 136.48 | -23.74 | 131.23 | 0.5219 | -529.0 | -520.9 | |
| 0.00 | 3.24 | 0.00 | 1.81 | -8.26 | 136.93 | -23.29 | 122.67 | 0.4668 | -271.0 | -375.6 | |
| 0.00 | 1.17 | 0.00 | 0.68 | -14.74 | 136.34 | -23.88 | 132.43 | 0.5326 | -710.0 | -533.0 | |
| 0.00 | 4.14 | 0.00 | 2.29 | -6.32 | 136.91 | -23.32 | 119.01 | 0.4517 | 678.0 | 499.6 | |
| 3.06 | 6.38 | 1.71 | 3.56 | -7.06 | 136.60 | -23.62 | 120.08 | 0.4614 | 755.3 | 510.6 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -6.81 | 136.48 | -23.74 | 119.49 | 0.4612 | 690.0 | 533.0 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -6.45 | 136.30 | -23.92 | 118.60 | 0.4609 | 611.0 | 442.2 | |
| 0.00 | 1.71 | 0.00 | 1.05 | -19.38 | 134.91 | -25.32 | 136.90 | 0.5926 | 670.0 | 541.5 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -6.61 | 136.12 | -24.10 | 118.73 | 0.4645 | -562.0 | -470.7 | |
| 0.00 | 1.80 | 0.00 | 1.01 | -7.03 | 135.90 | -24.32 | 119.28 | 0.4706 | -920.0 | -775.5 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -19.48 | 134.39 | -25.83 | 136.45 | 0.5985 | 576.0 | 473.3 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -17.26 | 132.19 | -28.04 | 131.35 | 0.6002 | 532.0 | 480.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
