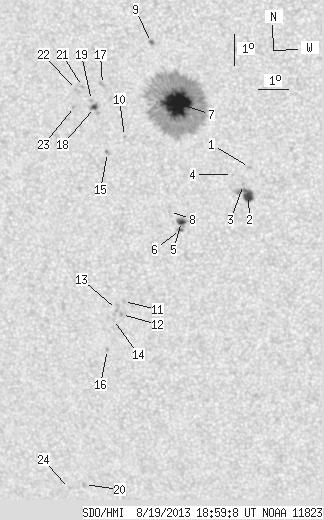

SDO HMI 2013-08-19 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.24 | 359.07 | 33.41 | 196.31 | -7.37 | 139.18 | -20.49 | 124.36 | 0.4231 | 637.8 | 333.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-08-19 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.63 | -8.73 | 141.56 | -18.11 | 130.54 | 0.4059 | 903.0 | 771.4 | |
| 8.18 | 15.65 | 4.45 | 8.52 | -9.61 | 141.48 | -18.19 | 132.05 | 0.4162 | 1056.6 | 543.0 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -9.27 | 141.34 | -18.33 | 131.20 | 0.4142 | 761.0 | 600.5 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -8.97 | 141.00 | -18.67 | 130.12 | 0.4152 | 699.0 | 617.3 | |
| 3.69 | 9.08 | 2.05 | 5.04 | -10.53 | 139.24 | -20.43 | 130.32 | 0.4520 | -1033.0 | -762.1 | |
| 0.90 | -5.00 | 0.50 | -5.00 | -10.78 | 139.18 | -20.49 | 130.68 | 0.4552 | -846.3 | 999999 | |
| 45.32 | 299.25 | 24.67 | 162.96 | -6.81 | 139.32 | -20.35 | 123.53 | 0.4159 | 1367.5 | 395.6 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -10.23 | 138.86 | -20.81 | 129.28 | 0.4535 | -831.0 | -705.2 | |
| 0.81 | 1.98 | 0.44 | 1.07 | -4.95 | 138.55 | -21.12 | 118.69 | 0.4110 | -859.0 | -670.9 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -7.92 | 137.52 | -22.15 | 123.41 | 0.4491 | 663.0 | 512.8 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -13.18 | 137.08 | -22.59 | 131.73 | 0.5032 | -763.0 | -581.5 | |
| 0.00 | 1.53 | 0.00 | 0.88 | -13.61 | 136.97 | -22.70 | 132.23 | 0.5086 | -890.0 | -719.8 | |
| 0.00 | 4.59 | 0.00 | 2.64 | -13.45 | 136.81 | -22.86 | 131.81 | 0.5088 | -715.0 | -648.7 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -13.78 | 136.68 | -22.99 | 132.13 | 0.5136 | -845.0 | -679.2 | |
| 0.00 | 1.89 | 0.00 | 1.05 | -8.45 | 136.93 | -22.74 | 123.67 | 0.4613 | -928.0 | -733.8 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -14.77 | 136.36 | -23.31 | 133.18 | 0.5267 | -626.0 | -509.1 | |
| 0.00 | 2.97 | 0.00 | 1.64 | -6.33 | 136.88 | -22.79 | 119.60 | 0.4446 | 880.0 | 684.5 | |
| 2.34 | 6.11 | 1.30 | 3.40 | -7.06 | 136.58 | -23.09 | 120.68 | 0.4544 | 815.7 | 577.5 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -6.84 | 136.49 | -23.18 | 120.17 | 0.4539 | 661.0 | 419.4 | |
| 0.00 | 2.07 | 0.00 | 1.26 | -19.31 | 134.93 | -24.74 | 137.47 | 0.5865 | 669.0 | 513.5 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -6.42 | 136.21 | -23.46 | 119.05 | 0.4544 | 511.0 | 340.1 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -6.52 | 136.01 | -23.66 | 119.03 | 0.4579 | -732.0 | -561.6 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -7.06 | 135.91 | -23.76 | 119.95 | 0.4633 | -816.0 | -760.6 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -19.48 | 134.37 | -25.30 | 137.04 | 0.5934 | 589.0 | 500.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
