SDO HMI 2013-08-19 21:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.43 | 345.96 | 32.65 | 187.03 | -7.28 | 139.24 | -18.77 | 126.64 | 0.4002 | 682.6 | 342.0 | |
|
previous
or next observation for the same group /

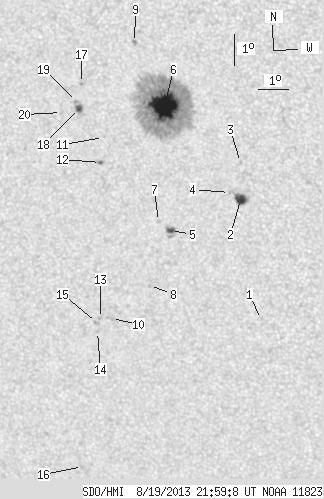

back to the solar disc SDO HMI 2013-08-19 21:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.25 | -13.48 | 142.07 | -15.94 | 142.11 | 0.4367 | -735.0 | -556.4 | |
| 8.54 | 13.67 | 4.61 | 7.37 | -9.66 | 141.62 | -16.39 | 135.16 | 0.3961 | 1029.2 | 499.0 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -8.49 | 141.68 | -16.33 | 133.08 | 0.3824 | 934.0 | 758.6 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -9.45 | 141.28 | -16.73 | 134.18 | 0.3976 | 593.0 | 436.5 | |
| 3.33 | 8.18 | 1.83 | 4.50 | -10.73 | 139.30 | -18.71 | 133.21 | 0.4342 | -1082.0 | -754.8 | |
| 44.33 | 296.12 | 23.88 | 159.59 | -6.79 | 139.32 | -18.69 | 125.84 | 0.3942 | 1395.4 | 418.9 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -10.46 | 138.93 | -19.08 | 132.17 | 0.4357 | -805.0 | -593.6 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -12.52 | 138.48 | -19.53 | 134.89 | 0.4626 | -573.0 | -509.7 | |
| 0.00 | 1.98 | 0.00 | 1.06 | -4.87 | 138.42 | -19.59 | 120.46 | 0.3892 | -1004.0 | -739.7 | |
| 0.00 | 3.24 | 0.00 | 1.84 | -13.64 | 137.12 | -20.89 | 134.68 | 0.4893 | -755.0 | -600.3 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -7.88 | 137.28 | -20.73 | 125.14 | 0.4305 | 485.0 | 410.0 | |
| 0.90 | 1.44 | 0.50 | 0.79 | -8.67 | 137.14 | -20.87 | 126.44 | 0.4396 | -988.5 | -851.0 | |
| 0.00 | 1.62 | 0.00 | 0.92 | -13.66 | 136.75 | -21.26 | 134.20 | 0.4934 | -838.0 | -719.9 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -14.08 | 136.61 | -21.40 | 134.64 | 0.4994 | -824.0 | -685.6 | |
| 0.00 | 2.16 | 0.00 | 1.23 | -13.79 | 136.60 | -21.41 | 134.20 | 0.4964 | -700.0 | -672.0 | |
| 0.00 | 1.44 | 0.00 | 0.86 | -18.58 | 135.56 | -22.45 | 139.31 | 0.5574 | 651.0 | 451.6 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -6.22 | 136.64 | -21.37 | 121.06 | 0.4246 | 619.0 | 522.0 | |
| 3.33 | 4.77 | 1.83 | 2.62 | -7.00 | 136.54 | -21.47 | 122.50 | 0.4325 | 807.5 | 569.2 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -6.79 | 136.45 | -21.56 | 121.97 | 0.4319 | 791.0 | 430.5 | |
| 0.00 | 1.98 | 0.00 | 1.09 | -7.15 | 135.94 | -22.07 | 122.06 | 0.4417 | -715.0 | -520.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
