SDO HMI 2013-08-20 00:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.31 | 356.31 | 34.93 | 190.89 | -7.26 | 139.11 | -17.25 | 129.01 | 0.3810 | 605.3 | 337.0 | |
|
previous
or next observation for the same group /

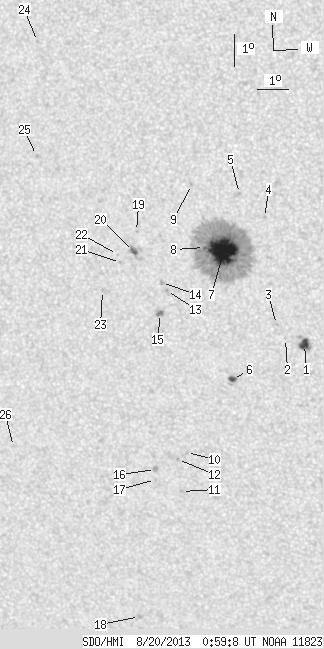

back to the solar disc SDO HMI 2013-08-20 00:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.38 | 12.32 | 3.94 | 6.58 | -9.66 | 141.79 | -14.57 | 138.55 | 0.3762 | 1004.7 | 635.2 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -9.49 | 141.19 | -15.17 | 137.09 | 0.3806 | 612.0 | 519.4 | |
| 0.00 | 1.53 | 0.00 | 0.82 | -9.05 | 140.92 | -15.43 | 135.79 | 0.3785 | 725.0 | 438.4 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -5.71 | 140.67 | -15.69 | 128.43 | 0.3450 | 901.0 | 653.9 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -4.99 | 139.90 | -16.46 | 125.43 | 0.3479 | -923.0 | -690.2 | |
| 2.79 | 6.12 | 1.52 | 3.33 | -10.85 | 139.42 | -16.94 | 136.29 | 0.4158 | -1013.6 | -654.9 | |
| 50.19 | 295.85 | 26.79 | 157.92 | -6.82 | 139.33 | -17.03 | 128.52 | 0.3733 | 1365.9 | 414.6 | |
| 0.81 | -7.00 | 0.43 | -7.00 | -6.71 | 138.72 | -17.63 | 127.32 | 0.3799 | 782.3 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -4.77 | 138.37 | -17.98 | 122.50 | 0.3664 | -981.0 | -739.9 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -13.25 | 137.75 | -18.61 | 137.42 | 0.4608 | -731.0 | -652.0 | |
| 0.00 | 1.62 | 0.00 | 0.91 | -14.52 | 137.48 | -18.88 | 138.86 | 0.4781 | -724.0 | -592.8 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -13.49 | 137.43 | -18.92 | 137.29 | 0.4668 | -884.0 | -779.8 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -8.11 | 137.44 | -18.92 | 128.15 | 0.4099 | 674.0 | 498.8 | |
| 0.00 | 1.98 | 0.00 | 1.07 | -7.86 | 137.29 | -19.07 | 127.45 | 0.4094 | 840.0 | 686.7 | |
| 1.89 | 5.04 | 1.03 | 2.75 | -8.84 | 137.20 | -19.15 | 129.19 | 0.4200 | -1061.8 | -765.5 | |
| 0.00 | 3.24 | 0.00 | 1.82 | -13.84 | 136.68 | -19.68 | 136.69 | 0.4787 | -785.0 | -678.4 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -14.17 | 136.65 | -19.71 | 137.13 | 0.4826 | -744.0 | -563.5 | |
| 0.00 | 1.98 | 0.00 | 1.17 | -18.73 | 135.60 | -20.76 | 141.69 | 0.5435 | 733.0 | 649.4 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -6.30 | 136.55 | -19.81 | 123.25 | 0.4045 | -678.0 | -552.7 | |
| 2.25 | 11.15 | 1.22 | 6.06 | -6.93 | 136.42 | -19.93 | 124.37 | 0.4118 | 767.0 | 497.4 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -7.29 | 135.98 | -20.38 | 124.49 | 0.4208 | -638.0 | -441.3 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -7.04 | 135.90 | -20.46 | 123.89 | 0.4197 | -532.0 | -431.1 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -8.19 | 135.34 | -21.01 | 125.39 | 0.4371 | -739.0 | -610.8 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -0.57 | 133.45 | -22.90 | 107.17 | 0.4090 | -790.0 | -662.2 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -4.08 | 133.35 | -23.00 | 114.86 | 0.4313 | -787.0 | -609.6 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -13.31 | 131.94 | -24.41 | 129.76 | 0.5253 | -665.0 | -509.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
