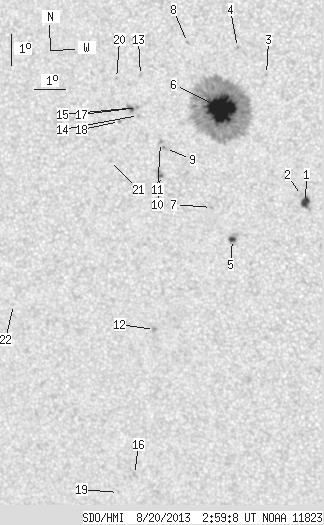

SDO HMI 2013-08-20 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.25 | 347.22 | 33.63 | 184.84 | -7.20 | 139.18 | -16.08 | 130.91 | 0.3658 | 771.9 | 349.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-08-20 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.94 | 9.54 | 3.16 | 5.07 | -9.65 | 141.86 | -13.40 | 140.93 | 0.3640 | 1031.3 | 522.7 | |
| 0.00 | 2.88 | 0.00 | 1.53 | -9.44 | 141.74 | -13.52 | 140.30 | 0.3624 | 719.0 | 551.8 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -5.67 | 140.77 | -14.49 | 130.62 | 0.3295 | 834.0 | 656.7 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -4.86 | 139.87 | -15.38 | 127.01 | 0.3325 | -905.0 | -630.4 | |
| 2.79 | 7.92 | 1.51 | 4.28 | -10.90 | 139.47 | -15.79 | 138.40 | 0.4041 | -1017.4 | -758.4 | |
| 51.64 | 296.10 | 27.40 | 157.16 | -6.78 | 139.31 | -15.95 | 130.32 | 0.3594 | 1389.8 | 417.7 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -9.91 | 138.85 | -16.41 | 135.59 | 0.3992 | -793.0 | -578.4 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -4.76 | 138.29 | -16.97 | 124.06 | 0.3525 | -672.0 | -464.8 | |
| 0.00 | 2.70 | 0.00 | 1.45 | -8.09 | 137.46 | -17.79 | 129.87 | 0.3959 | 727.0 | 544.2 | |
| 0.99 | 3.87 | 0.54 | 2.10 | -8.95 | 137.26 | -18.00 | 131.18 | 0.4072 | -1066.3 | -853.8 | |
| 0.00 | 1.98 | 0.00 | 1.07 | -7.91 | 137.31 | -17.95 | 129.27 | 0.3959 | 910.0 | 735.0 | |
| 0.00 | 2.16 | 0.00 | 1.21 | -13.89 | 136.73 | -18.53 | 138.49 | 0.4674 | -902.0 | -727.9 | |
| 0.00 | 1.53 | 0.00 | 0.82 | -5.84 | 136.75 | -18.50 | 124.13 | 0.3831 | -841.0 | -572.5 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -7.09 | 136.64 | -18.62 | 126.59 | 0.3962 | 568.0 | 406.6 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -6.84 | 136.62 | -18.64 | 126.05 | 0.3942 | 899.0 | 716.2 | |
| 0.00 | 1.98 | 0.00 | 1.16 | -18.72 | 135.56 | -19.70 | 143.11 | 0.5340 | 769.0 | 638.4 | |
| 1.89 | 3.51 | 1.02 | 1.89 | -6.88 | 136.39 | -18.87 | 125.80 | 0.3975 | 781.1 | 591.7 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -7.30 | 136.02 | -19.24 | 126.10 | 0.4063 | -699.0 | -528.5 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -19.35 | 134.93 | -20.33 | 143.00 | 0.5467 | 621.0 | 451.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -5.96 | 135.98 | -19.28 | 123.28 | 0.3945 | -806.0 | -696.9 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -8.54 | 135.66 | -19.60 | 127.99 | 0.4226 | -756.0 | -613.6 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -13.28 | 132.07 | -23.19 | 131.18 | 0.5112 | -616.0 | -483.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
