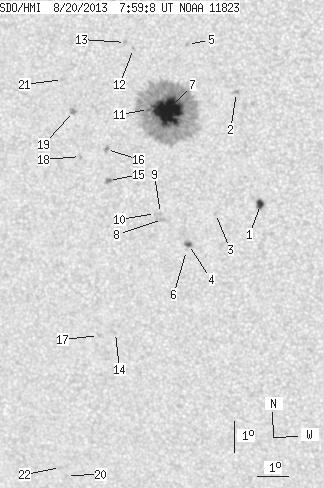

SDO HMI 2013-08-20 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.01 | 335.59 | 32.53 | 176.23 | -7.08 | 139.18 | -13.33 | 136.03 | 0.3319 | 728.2 | 340.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-08-20 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.59 | 6.39 | 2.41 | 3.36 | -9.64 | 142.11 | -10.41 | 147.75 | 0.3354 | 1069.4 | 785.7 | |
| 0.00 | 2.70 | 0.00 | 1.40 | -6.14 | 141.45 | -11.06 | 139.46 | 0.2948 | -933.0 | -701.8 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -9.96 | 140.68 | -11.84 | 144.87 | 0.3526 | 744.0 | 637.1 | |
| 2.07 | 3.69 | 1.11 | 1.97 | -10.97 | 139.79 | -12.73 | 144.52 | 0.3744 | -1083.4 | -854.8 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -4.69 | 139.96 | -12.56 | 132.37 | 0.2946 | -946.0 | -701.5 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -11.16 | 139.72 | -12.80 | 144.67 | 0.3776 | -698.0 | -603.7 | |
| 51.75 | 294.73 | 27.11 | 154.46 | -6.76 | 139.28 | -13.23 | 135.65 | 0.3267 | 1410.7 | 411.7 | |
| 0.00 | 2.88 | 0.00 | 1.54 | -10.20 | 139.00 | -13.52 | 141.60 | 0.3720 | -848.0 | -731.3 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -10.01 | 138.94 | -13.57 | 141.17 | 0.3702 | -849.0 | -631.1 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -10.01 | 138.79 | -13.73 | 140.85 | 0.3719 | -876.0 | -673.0 | |
| 2.52 | -7.00 | 1.32 | -7.00 | -6.74 | 138.69 | -13.83 | 134.34 | 0.3334 | 830.6 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -4.86 | 138.27 | -14.25 | 129.15 | 0.3177 | -641.0 | -450.1 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -4.68 | 138.02 | -14.50 | 128.23 | 0.3190 | 974.0 | 623.3 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -13.87 | 137.29 | -15.23 | 143.93 | 0.4350 | -718.0 | -591.4 | |
| 1.08 | 3.06 | 0.58 | 1.63 | -9.01 | 137.34 | -15.18 | 136.19 | 0.3752 | -1060.2 | -847.9 | |
| 0.00 | 2.25 | 0.00 | 1.20 | -8.04 | 137.31 | -15.20 | 134.28 | 0.3643 | 891.0 | 771.3 | |
| 0.00 | 1.44 | 0.00 | 0.79 | -13.99 | 136.73 | -15.79 | 143.10 | 0.4417 | -779.0 | -673.0 | |
| 0.00 | 1.80 | 0.00 | 0.96 | -8.28 | 136.48 | -16.04 | 133.21 | 0.3768 | -829.0 | -692.5 | |
| 0.00 | 3.69 | 0.00 | 1.96 | -6.88 | 136.31 | -16.21 | 130.06 | 0.3637 | 867.0 | 703.7 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -18.66 | 135.26 | -17.26 | 146.57 | 0.5124 | 682.0 | 566.8 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -5.89 | 135.99 | -16.53 | 127.37 | 0.3576 | -808.0 | -645.5 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -18.39 | 135.08 | -17.44 | 146.01 | 0.5106 | 735.0 | 606.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
