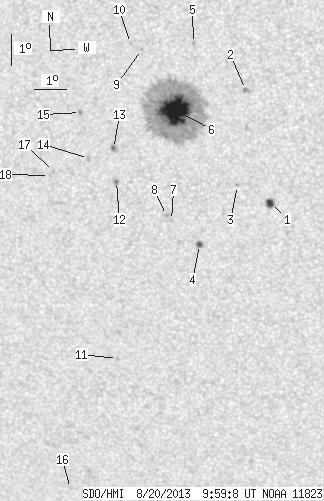

SDO HMI 2013-08-20 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.47 | 350.85 | 31.59 | 183.31 | -7.02 | 139.27 | -12.15 | 138.62 | 0.3178 | 720.4 | 329.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-08-20 09:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.77 | 6.57 | 2.50 | 3.44 | -9.63 | 142.20 | -9.22 | 150.78 | 0.3251 | 989.2 | 749.5 | |
| 0.45 | 3.15 | 0.23 | 1.63 | -6.07 | 141.51 | -9.91 | 142.38 | 0.2817 | -963.4 | -747.0 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -9.08 | 141.19 | -10.24 | 147.26 | 0.3259 | 841.0 | 666.2 | |
| 2.07 | 3.78 | 1.10 | 2.01 | -10.98 | 139.93 | -11.50 | 147.25 | 0.3632 | -997.0 | -776.6 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -4.67 | 139.92 | -11.50 | 134.87 | 0.2816 | -805.0 | -678.1 | |
| 51.20 | 314.67 | 26.71 | 164.16 | -6.77 | 139.32 | -12.11 | 138.24 | 0.3140 | 1380.1 | 388.0 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -10.24 | 139.07 | -12.35 | 144.17 | 0.3611 | -815.0 | -742.7 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -10.08 | 138.92 | -12.50 | 143.58 | 0.3605 | -981.0 | -901.9 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -4.90 | 138.30 | -13.12 | 131.61 | 0.3039 | -780.0 | -470.5 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -4.72 | 137.96 | -13.46 | 130.44 | 0.3062 | 823.0 | 561.1 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -14.73 | 137.10 | -14.32 | 146.73 | 0.4378 | -768.0 | -519.8 | |
| 0.81 | 3.24 | 0.43 | 1.72 | -9.05 | 137.38 | -14.04 | 138.50 | 0.3631 | -1023.6 | -756.0 | |
| 1.17 | 2.43 | 0.62 | 1.28 | -8.01 | 137.33 | -14.09 | 136.41 | 0.3512 | 926.3 | 759.1 | |
| 0.00 | 2.52 | 0.00 | 1.34 | -8.35 | 136.52 | -14.90 | 135.47 | 0.3643 | -806.0 | -699.2 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -6.91 | 136.32 | -15.10 | 132.17 | 0.3504 | 800.0 | 685.2 | |
| 0.00 | 1.44 | 0.00 | 0.83 | -19.10 | 135.19 | -16.24 | 148.64 | 0.5096 | 635.0 | 580.4 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -8.79 | 135.39 | -16.03 | 134.21 | 0.3824 | -851.0 | -623.7 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -8.92 | 135.26 | -16.16 | 134.21 | 0.3854 | -614.0 | -567.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
