SDO HMI 2013-08-20 12:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.78 | 339.93 | 28.43 | 176.57 | -7.01 | 139.27 | -10.50 | 142.72 | 0.3005 | 648.9 | 346.5 | |
|
previous
or next observation for the same group /

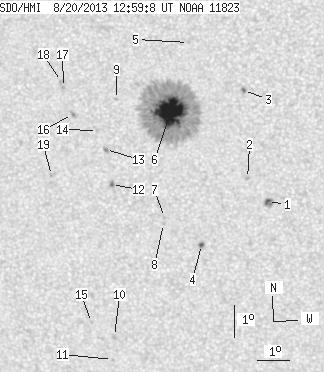

back to the solar disc SDO HMI 2013-08-20 12:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.16 | 6.66 | 1.12 | 3.47 | -9.53 | 142.26 | -7.51 | 155.40 | 0.3109 | 1030.2 | 773.8 | |
| 0.00 | 1.98 | 0.00 | 1.03 | -8.82 | 141.66 | -8.11 | 152.63 | 0.3045 | 855.0 | 598.8 | |
| 0.81 | 1.71 | 0.42 | 0.88 | -6.06 | 141.59 | -8.18 | 147.57 | 0.2650 | -896.2 | -798.9 | |
| 1.44 | 2.61 | 0.76 | 1.38 | -10.93 | 140.17 | -9.60 | 151.70 | 0.3470 | -952.8 | -811.2 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -4.61 | 139.92 | -9.85 | 139.15 | 0.2619 | -681.0 | -526.6 | |
| 49.20 | 305.37 | 25.51 | 158.38 | -6.76 | 139.32 | -10.45 | 142.38 | 0.2964 | 1332.4 | 396.3 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -10.10 | 139.04 | -10.73 | 147.68 | 0.3445 | -894.0 | -755.5 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -10.29 | 139.00 | -10.77 | 147.89 | 0.3475 | -739.0 | -652.2 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -6.43 | 137.65 | -12.12 | 137.45 | 0.3100 | 687.0 | 503.4 | |
| 0.00 | 2.88 | 0.00 | 1.56 | -13.96 | 137.28 | -12.49 | 149.25 | 0.4123 | -793.0 | -588.1 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -14.71 | 137.17 | -12.60 | 149.97 | 0.4234 | -653.0 | -509.1 | |
| 0.81 | 2.16 | 0.43 | 1.14 | -9.10 | 137.41 | -12.36 | 142.18 | 0.3463 | -951.9 | -837.0 | |
| 0.36 | 2.07 | 0.19 | 1.09 | -8.00 | 137.26 | -12.51 | 139.79 | 0.3338 | 881.0 | 723.9 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -7.41 | 137.03 | -12.74 | 138.09 | 0.3290 | 732.0 | 472.0 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -13.52 | 136.57 | -13.20 | 147.26 | 0.4124 | -698.0 | -582.3 | |
| 0.00 | 2.52 | 0.00 | 1.32 | -6.93 | 136.26 | -13.51 | 135.40 | 0.3319 | 690.0 | 625.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -6.10 | 136.00 | -13.77 | 133.03 | 0.3253 | -876.0 | -723.2 | |
| 0.00 | 2.07 | 0.00 | 1.08 | -5.91 | 135.94 | -13.83 | 132.49 | 0.3239 | -833.0 | -692.4 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -8.86 | 135.52 | -14.25 | 137.74 | 0.3631 | -799.0 | -666.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
