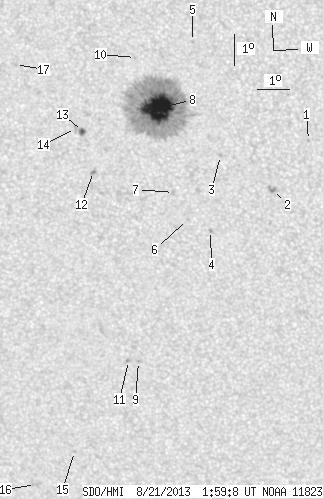

SDO HMI 2013-08-21 01:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.87 | 342.20 | 27.53 | 175.17 | -7.16 | 139.24 | -3.35 | 166.58 | 0.2511 | 828.3 | 400.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-08-21 01:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.46 | -7.77 | 143.90 | 1.31 | 185.10 | 0.2556 | -854.0 | -637.6 | |
| 0.00 | 4.32 | 0.00 | 2.23 | -9.31 | 142.80 | 0.21 | 180.73 | 0.2807 | 1057.0 | 854.9 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -8.24 | 141.21 | -1.39 | 174.77 | 0.2636 | 767.0 | 604.1 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -10.61 | 140.88 | -1.71 | 174.45 | 0.3038 | -1073.0 | -838.3 | |
| 0.00 | 1.17 | 0.00 | 0.59 | -4.69 | 140.37 | -2.22 | 169.11 | 0.2056 | -878.0 | -601.5 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -10.26 | 140.18 | -2.41 | 172.01 | 0.2994 | -751.0 | -637.9 | |
| 0.00 | 2.34 | 0.00 | 1.21 | -9.41 | 139.75 | -2.84 | 170.14 | 0.2864 | 779.0 | 523.7 | |
| 51.26 | 310.52 | 26.18 | 158.60 | -6.77 | 139.32 | -3.27 | 166.51 | 0.2443 | 1425.1 | 434.2 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -14.84 | 138.59 | -4.00 | 169.68 | 0.3781 | -902.0 | -717.6 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -5.19 | 138.63 | -3.96 | 161.80 | 0.2215 | -739.0 | -574.9 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -14.81 | 138.27 | -4.32 | 168.87 | 0.3786 | -916.0 | -765.3 | |
| 0.36 | 2.25 | 0.19 | 1.16 | -8.77 | 137.30 | -5.29 | 161.33 | 0.2860 | -987.2 | -835.5 | |
| 2.25 | 3.96 | 1.16 | 2.03 | -7.51 | 136.98 | -5.61 | 158.70 | 0.2680 | 993.1 | 708.4 | |
| 0.00 | 2.61 | 0.00 | 1.34 | -7.42 | 136.77 | -5.83 | 157.83 | 0.2679 | 800.0 | 626.6 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -17.84 | 136.48 | -6.12 | 166.36 | 0.4320 | 665.0 | 544.8 | |
| 0.00 | 4.59 | 0.00 | 2.55 | -18.96 | 135.17 | -7.42 | 164.34 | 0.4542 | 778.0 | 505.2 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -5.45 | 134.95 | -7.64 | 148.16 | 0.2520 | -794.0 | -598.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
