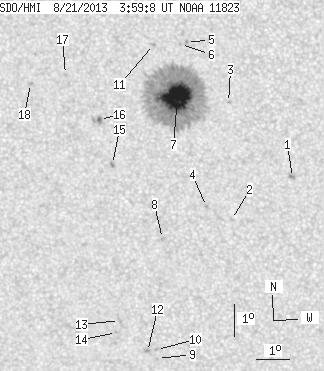

SDO HMI 2013-08-21 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.20 | 351.98 | 25.11 | 179.83 | -6.97 | 139.28 | -2.21 | 170.89 | 0.2443 | 633.0 | 344.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-08-21 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.43 | 0.00 | 1.25 | -9.28 | 142.87 | 1.37 | 184.85 | 0.2812 | 1039.0 | 849.0 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -10.61 | 140.99 | -0.50 | 178.35 | 0.3026 | -936.0 | -607.4 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -6.92 | 140.91 | -0.59 | 177.57 | 0.2405 | -501.0 | -396.0 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -10.20 | 140.22 | -1.27 | 175.75 | 0.2964 | -874.0 | -667.6 | |
| 0.00 | 1.80 | 0.00 | 0.91 | -5.06 | 139.63 | -1.86 | 171.13 | 0.2109 | -799.0 | -587.2 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -5.12 | 139.45 | -2.04 | 170.33 | 0.2124 | -815.0 | -631.5 | |
| 48.39 | 321.56 | 24.69 | 164.09 | -6.74 | 139.35 | -2.14 | 171.05 | 0.2400 | 1478.5 | 420.9 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -11.22 | 138.85 | -2.64 | 171.74 | 0.3158 | -813.0 | -673.3 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -15.10 | 138.65 | -2.84 | 172.71 | 0.3794 | -559.0 | -422.3 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -14.80 | 138.62 | -2.87 | 172.54 | 0.3747 | -873.0 | -585.2 | |
| 0.00 | 1.89 | 0.00 | 0.96 | -5.12 | 138.63 | -2.87 | 166.56 | 0.2153 | -787.0 | -581.5 | |
| 0.00 | 1.89 | 0.00 | 1.01 | -14.87 | 138.34 | -3.16 | 171.84 | 0.3764 | -1028.0 | -880.9 | |
| 0.00 | 1.89 | 0.00 | 1.00 | -13.87 | 137.48 | -4.02 | 169.14 | 0.3626 | -893.0 | -769.3 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -14.26 | 137.38 | -4.12 | 169.08 | 0.3691 | -952.0 | -689.9 | |
| 0.00 | 2.07 | 0.00 | 1.07 | -8.88 | 137.34 | -4.16 | 165.25 | 0.2825 | -1046.0 | -864.7 | |
| 0.81 | 4.77 | 0.42 | 2.45 | -7.47 | 136.96 | -4.54 | 162.45 | 0.2614 | 1161.4 | 792.3 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -6.08 | 135.93 | -5.56 | 156.74 | 0.2452 | -824.0 | -669.1 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -6.37 | 134.85 | -6.64 | 153.35 | 0.2574 | -835.0 | -651.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
