SDO HMI 2013-08-21 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.99 | 355.72 | 27.03 | 181.72 | -7.09 | 139.16 | -0.69 | 177.27 | 0.2437 | 619.9 | 342.2 | |
|
previous
or next observation for the same group /

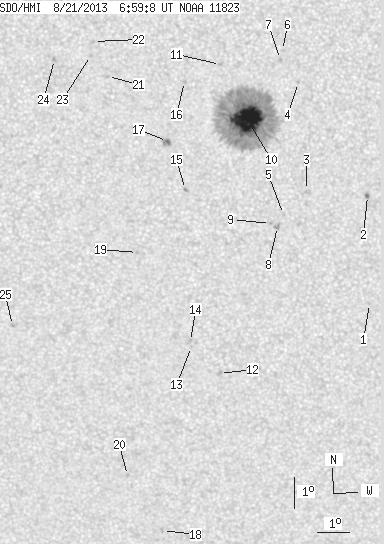

back to the solar disc SDO HMI 2013-08-21 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.57 | -12.61 | 143.10 | 3.25 | 189.40 | 0.3401 | -709.0 | -483.1 | |
| 0.81 | 2.07 | 0.42 | 1.07 | -9.17 | 143.00 | 3.15 | 191.10 | 0.2834 | 1030.1 | 847.2 | |
| 0.00 | 0.63 | 0.00 | 0.32 | -9.00 | 141.13 | 1.28 | 184.59 | 0.2763 | 524.0 | 396.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -5.62 | 140.88 | 1.03 | 184.71 | 0.2187 | 889.0 | 642.0 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -9.75 | 140.42 | 0.57 | 181.97 | 0.2883 | 862.0 | 602.6 | |
| 0.00 | 1.53 | 0.00 | 0.77 | -4.62 | 140.39 | 0.54 | 182.70 | 0.2012 | -822.0 | -672.3 | |
| 0.00 | 1.35 | 0.00 | 0.68 | -4.90 | 140.33 | 0.48 | 182.34 | 0.2059 | -791.0 | -639.9 | |
| 0.00 | 3.42 | 0.00 | 1.77 | -10.13 | 140.24 | 0.39 | 181.30 | 0.2946 | -907.0 | -778.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -10.04 | 140.02 | 0.17 | 180.58 | 0.2929 | -884.0 | -677.8 | |
| 51.28 | 316.93 | 26.15 | 161.60 | -6.77 | 139.32 | -0.53 | 177.79 | 0.2378 | 1484.7 | 428.7 | |
| 0.00 | 1.80 | 0.00 | 0.91 | -5.06 | 138.50 | -1.35 | 173.56 | 0.2097 | -974.0 | -657.3 | |
| 0.00 | 2.43 | 0.00 | 1.30 | -14.86 | 138.42 | -1.43 | 176.28 | 0.3734 | -1049.0 | -791.7 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -13.99 | 137.55 | -2.30 | 173.77 | 0.3604 | -827.0 | -692.6 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -13.83 | 137.52 | -2.33 | 173.64 | 0.3578 | -806.0 | -736.9 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -8.97 | 137.41 | -2.44 | 171.27 | 0.2780 | -916.0 | -794.4 | |
| 0.00 | 1.62 | 0.00 | 0.82 | -5.59 | 137.41 | -2.45 | 168.90 | 0.2215 | -544.0 | -528.3 | |
| 0.90 | 4.95 | 0.46 | 2.53 | -7.46 | 136.87 | -2.98 | 168.27 | 0.2546 | 1118.8 | 776.1 | |
| 0.00 | 1.80 | 0.00 | 1.00 | -20.11 | 136.53 | -3.32 | 173.17 | 0.4593 | 733.0 | 607.1 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -10.97 | 135.91 | -3.94 | 167.60 | 0.3156 | -825.0 | -711.5 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -18.26 | 135.45 | -4.40 | 170.27 | 0.4330 | 868.0 | 676.8 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -5.45 | 135.06 | -4.80 | 158.72 | 0.2303 | -828.0 | -676.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -4.37 | 134.64 | -5.21 | 155.10 | 0.2161 | -708.0 | -474.2 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -4.80 | 134.54 | -5.31 | 155.53 | 0.2236 | -868.0 | -655.4 | |
| 0.00 | 1.44 | 0.00 | 0.73 | -4.94 | 133.44 | -6.41 | 151.47 | 0.2340 | -866.0 | -735.0 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -13.36 | 131.95 | -7.90 | 158.85 | 0.3720 | -841.0 | -657.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
