SDO HMI 2013-08-22 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.49 | 315.08 | 24.21 | 164.10 | -6.79 | 139.34 | 11.61 | 220.37 | 0.3100 | 1003.0 | 413.1 | |
|
previous
or next observation for the same group /

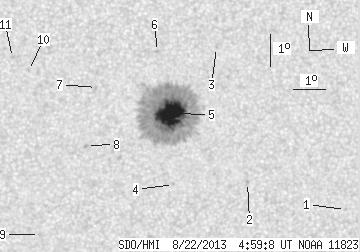

back to the solar disc SDO HMI 2013-08-22 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.49 | -9.97 | 145.04 | 17.31 | 225.72 | 0.4109 | 612.0 | 538.7 | |
| 0.00 | 1.80 | 0.00 | 0.96 | -9.00 | 141.86 | 14.13 | 221.63 | 0.3645 | 754.0 | 606.1 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -4.75 | 140.77 | 13.04 | 228.37 | 0.3021 | -679.0 | -579.4 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -9.00 | 139.53 | 11.80 | 216.56 | 0.3405 | 776.0 | 508.8 | |
| 46.49 | 304.19 | 24.21 | 158.42 | -6.77 | 139.37 | 11.64 | 220.49 | 0.3100 | 1484.7 | 432.2 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -4.83 | 138.93 | 11.20 | 223.79 | 0.2809 | -813.0 | -589.5 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -5.90 | 137.06 | 9.33 | 216.13 | 0.2747 | -710.0 | -561.3 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -7.71 | 136.78 | 9.05 | 211.79 | 0.2973 | 934.0 | 774.9 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -10.49 | 135.39 | 7.66 | 203.68 | 0.3276 | -804.0 | -585.6 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -5.33 | 134.96 | 7.23 | 210.60 | 0.2472 | -796.0 | -620.6 | |
| 0.00 | 1.26 | 0.00 | 0.64 | -4.92 | 134.46 | 6.73 | 209.68 | 0.2370 | -906.0 | -735.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
