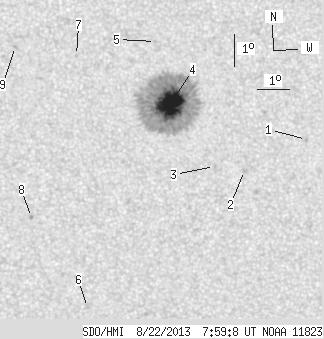

SDO HMI 2013-08-22 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.16 | 297.29 | 22.63 | 155.86 | -6.82 | 139.37 | 13.28 | 224.15 | 0.3290 | 1057.7 | 446.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-08-22 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.63 | -8.06 | 143.75 | 17.66 | 229.86 | 0.3946 | 729.0 | 656.3 | |
| 0.00 | 2.61 | 0.00 | 1.40 | -8.96 | 141.80 | 15.72 | 224.77 | 0.3815 | 738.0 | 530.3 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -8.80 | 140.84 | 14.76 | 223.25 | 0.3689 | 780.0 | 583.4 | |
| 43.16 | 286.94 | 22.63 | 150.41 | -6.78 | 139.39 | 13.30 | 224.29 | 0.3286 | 1511.2 | 469.6 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -4.84 | 138.87 | 12.79 | 227.60 | 0.2999 | -702.0 | -571.7 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -13.19 | 137.00 | 10.92 | 208.32 | 0.3903 | -795.0 | -731.3 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -5.21 | 136.42 | 10.34 | 220.57 | 0.2760 | -775.0 | -643.3 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -10.26 | 135.14 | 9.05 | 207.73 | 0.3341 | -909.0 | -780.9 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -4.89 | 134.54 | 8.45 | 215.68 | 0.2521 | -868.0 | -755.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
