SDO HMI 2013-08-22 15:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.89 | 310.59 | 25.13 | 166.50 | -7.07 | 139.30 | 17.62 | 231.83 | 0.3847 | 763.5 | 390.0 | |
|
previous
or next observation for the same group /

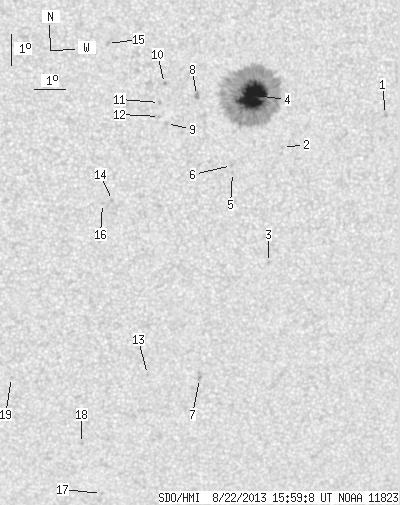

back to the solar disc SDO HMI 2013-08-22 15:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.89 | 0.00 | 1.04 | -7.59 | 143.78 | 22.10 | 236.98 | 0.4466 | 623.0 | 610.2 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -8.48 | 140.46 | 18.78 | 230.80 | 0.4126 | -194.0 | -202.7 | |
| 0.00 | 1.71 | 0.00 | 0.95 | -12.12 | 140.22 | 18.54 | 224.13 | 0.4484 | -715.0 | -590.0 | |
| 46.89 | 285.31 | 25.13 | 152.86 | -6.81 | 139.45 | 17.77 | 232.55 | 0.3834 | 1409.5 | 435.6 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -9.20 | 138.88 | 17.20 | 226.93 | 0.4013 | 686.0 | 449.0 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -8.98 | 138.84 | 17.16 | 227.27 | 0.3983 | 800.0 | 630.4 | |
| 0.00 | 1.89 | 0.00 | 1.06 | -15.80 | 138.25 | 16.57 | 215.69 | 0.4721 | -745.0 | -605.6 | |
| 0.00 | 3.59 | 0.00 | 1.91 | -6.74 | 137.63 | 15.95 | 229.62 | 0.3598 | 899.0 | 756.1 | |
| 0.00 | 1.98 | 0.00 | 1.05 | -7.59 | 136.71 | 15.03 | 226.15 | 0.3579 | 107.0 | 91.3 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -6.33 | 136.61 | 14.92 | 228.59 | 0.3427 | -786.0 | -659.1 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -6.92 | 136.47 | 14.78 | 227.05 | 0.3475 | -944.0 | -793.4 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -7.36 | 136.48 | 14.80 | 226.17 | 0.3526 | -785.0 | -555.0 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -15.61 | 136.53 | 14.85 | 213.02 | 0.4548 | -704.0 | -568.2 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -9.96 | 135.09 | 13.41 | 218.45 | 0.3688 | -850.0 | -658.3 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -5.04 | 134.79 | 13.10 | 227.83 | 0.3060 | -875.0 | -670.2 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -10.04 | 134.78 | 13.09 | 217.65 | 0.3668 | -749.0 | -656.8 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -19.53 | 135.33 | 13.65 | 206.68 | 0.4974 | 474.0 | 488.4 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -17.83 | 134.54 | 12.86 | 206.98 | 0.4689 | 604.0 | 496.9 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -15.58 | 132.14 | 10.46 | 204.64 | 0.4211 | 661.0 | 530.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
