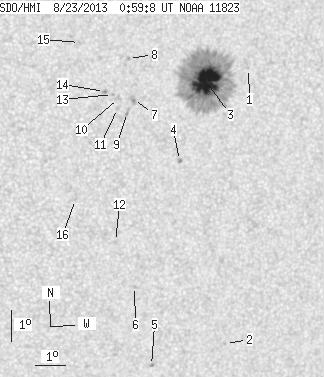

SDO HMI 2013-08-23 00:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.45 | 300.01 | 25.75 | 166.16 | -7.06 | 139.32 | 22.61 | 238.54 | 0.4493 | 677.8 | 363.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-08-23 00:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.40 | -6.57 | 140.88 | 24.17 | 241.18 | 0.4661 | 667.0 | 465.2 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -15.33 | 140.85 | 24.14 | 226.88 | 0.5425 | -720.0 | -578.6 | |
| 46.45 | 276.09 | 25.75 | 153.00 | -6.91 | 139.50 | 22.79 | 239.04 | 0.4502 | 1249.1 | 410.2 | |
| 0.00 | 1.98 | 0.00 | 1.10 | -9.35 | 138.74 | 22.03 | 233.65 | 0.4615 | 782.0 | 645.1 | |
| 0.00 | 1.62 | 0.00 | 0.94 | -15.92 | 138.39 | 21.68 | 223.00 | 0.5230 | -766.0 | -612.1 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -13.31 | 137.56 | 20.85 | 225.60 | 0.4866 | -720.0 | -604.4 | |
| 0.00 | 3.95 | 0.00 | 2.16 | -7.36 | 137.12 | 20.41 | 235.23 | 0.4228 | 865.0 | 831.6 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -6.07 | 136.90 | 20.19 | 237.53 | 0.4085 | -767.0 | -631.7 | |
| 0.00 | 2.61 | 0.00 | 1.42 | -7.76 | 136.94 | 20.23 | 234.21 | 0.4242 | 828.0 | 679.7 | |
| 0.00 | 2.96 | 0.00 | 1.61 | -7.30 | 136.63 | 19.92 | 234.66 | 0.4159 | -611.0 | -461.8 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -7.62 | 136.61 | 19.90 | 234.03 | 0.4186 | -793.0 | -617.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -11.83 | 136.80 | 20.09 | 226.84 | 0.4628 | -271.0 | -339.8 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -7.17 | 136.43 | 19.72 | 234.65 | 0.4121 | -662.0 | -642.3 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -7.06 | 136.16 | 19.45 | 234.48 | 0.4077 | -953.0 | -838.4 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -5.50 | 135.30 | 18.59 | 236.51 | 0.3820 | -789.0 | -698.5 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -10.43 | 135.40 | 18.69 | 227.08 | 0.4321 | -635.0 | -490.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
