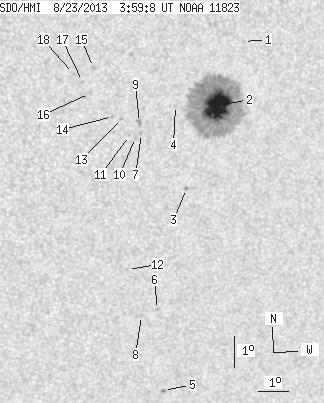

SDO HMI 2013-08-23 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.38 | 294.10 | 26.06 | 164.96 | -7.01 | 139.35 | 24.29 | 240.49 | 0.4712 | 664.9 | 375.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-08-23 03:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.71 | -4.95 | 140.34 | 25.27 | 245.34 | 0.4699 | -634.0 | -454.6 | |
| 45.84 | 270.97 | 25.74 | 152.11 | -6.90 | 139.55 | 24.49 | 240.89 | 0.4729 | 1291.3 | 422.7 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -9.46 | 138.67 | 23.61 | 235.35 | 0.4822 | 795.0 | 667.2 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -6.83 | 138.15 | 23.08 | 239.52 | 0.4536 | 572.0 | 448.8 | |
| 0.54 | 1.62 | 0.32 | 0.95 | -15.95 | 138.53 | 23.46 | 225.21 | 0.5415 | -664.5 | -546.7 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -13.28 | 138.03 | 22.96 | 228.40 | 0.5098 | -696.0 | -555.5 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -7.65 | 137.06 | 22.00 | 236.70 | 0.4461 | 743.0 | 584.8 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -13.45 | 137.50 | 22.44 | 227.49 | 0.5056 | -771.0 | -556.8 | |
| 0.00 | 3.33 | 0.00 | 1.83 | -7.30 | 136.98 | 21.92 | 237.26 | 0.4420 | 898.0 | 731.1 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -7.76 | 136.87 | 21.81 | 236.24 | 0.4446 | 847.0 | 660.5 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -7.69 | 136.67 | 21.61 | 236.13 | 0.4413 | -615.0 | -445.5 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -11.94 | 136.89 | 21.83 | 229.03 | 0.4838 | -655.0 | -521.5 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -7.15 | 136.38 | 21.32 | 236.81 | 0.4328 | -649.0 | -560.6 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -7.07 | 136.08 | 21.02 | 236.58 | 0.4282 | -906.0 | -780.8 | |
| 0.00 | 1.98 | 0.00 | 1.07 | -5.51 | 135.40 | 20.33 | 238.87 | 0.4058 | -813.0 | -614.0 | |
| 0.00 | 1.80 | 0.00 | 0.98 | -6.32 | 135.30 | 20.23 | 237.07 | 0.4113 | -636.0 | -448.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -5.93 | 135.06 | 19.99 | 237.54 | 0.4047 | -573.0 | -502.4 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -5.67 | 134.75 | 19.69 | 237.69 | 0.3984 | -638.0 | -533.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
