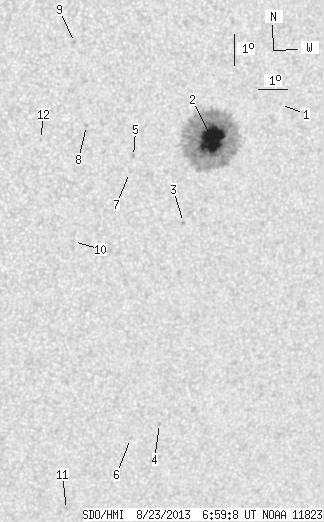

SDO HMI 2013-08-23 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.03 | 284.15 | 25.65 | 161.75 | -7.06 | 139.48 | 26.06 | 242.16 | 0.4954 | 882.8 | 373.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-08-23 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.31 | -5.98 | 141.89 | 28.47 | 246.14 | 0.5204 | -589.0 | -451.8 | |
| 45.03 | 272.18 | 25.65 | 154.99 | -6.93 | 139.60 | 26.18 | 242.49 | 0.4958 | 1345.4 | 399.0 | |
| 0.00 | 1.35 | 0.00 | 0.77 | -9.49 | 138.79 | 25.37 | 237.23 | 0.5046 | 778.0 | 642.3 | |
| 0.00 | 1.35 | 0.00 | 0.80 | -15.95 | 138.65 | 25.23 | 227.28 | 0.5600 | -841.0 | -609.9 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -7.32 | 136.96 | 23.54 | 239.10 | 0.4635 | 862.0 | 765.4 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -16.39 | 137.70 | 24.28 | 225.59 | 0.5543 | -588.0 | -533.6 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -7.82 | 136.86 | 23.43 | 238.07 | 0.4661 | 559.0 | 460.9 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -6.27 | 135.35 | 21.93 | 239.28 | 0.4337 | -800.0 | -637.5 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -3.68 | 134.87 | 21.45 | 244.17 | 0.4072 | -804.0 | -601.6 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -9.90 | 135.13 | 21.71 | 232.26 | 0.4626 | -751.0 | -569.9 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -18.65 | 135.79 | 22.37 | 220.38 | 0.5587 | 676.0 | 573.1 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -6.64 | 133.86 | 20.44 | 236.69 | 0.4168 | -655.0 | -596.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
