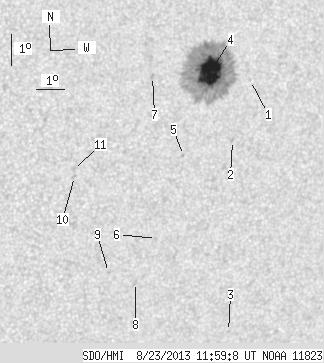

SDO HMI 2013-08-23 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.30 | 262.56 | 25.90 | 153.49 | -7.16 | 139.55 | 28.87 | 244.43 | 0.5335 | 897.9 | 363.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-08-23 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.37 | -7.35 | 141.09 | 30.41 | 245.30 | 0.5547 | 671.0 | 503.1 | |
| 0.00 | 1.71 | 0.00 | 1.02 | -9.20 | 140.60 | 29.93 | 241.93 | 0.5603 | 635.0 | 469.3 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -15.36 | 141.24 | 30.56 | 233.43 | 0.6128 | -437.0 | -350.4 | |
| 44.30 | 249.15 | 25.90 | 145.64 | -6.98 | 139.65 | 28.97 | 244.82 | 0.5334 | 1281.0 | 395.8 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -9.57 | 138.91 | 28.23 | 239.89 | 0.5414 | 776.0 | 590.1 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -12.16 | 138.23 | 27.55 | 235.18 | 0.5529 | -623.0 | -468.6 | |
| 0.00 | 1.62 | 0.00 | 0.93 | -7.01 | 137.64 | 26.97 | 243.07 | 0.5069 | 789.0 | 665.2 | |
| 0.00 | 2.07 | 0.00 | 1.23 | -13.54 | 137.65 | 26.98 | 232.56 | 0.5576 | -548.0 | -467.0 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -13.16 | 136.67 | 25.99 | 232.08 | 0.5430 | -706.0 | -650.2 | |
| 0.00 | 1.80 | 0.00 | 1.03 | -10.02 | 135.20 | 24.52 | 235.44 | 0.4983 | -695.0 | -579.5 | |
| 0.00 | 1.89 | 0.00 | 1.08 | -9.79 | 135.15 | 24.47 | 235.76 | 0.4958 | -806.0 | -666.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
