SDO HMI 2013-08-23 13:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.82 | 263.91 | 26.51 | 155.98 | -7.07 | 139.58 | 30.00 | 245.47 | 0.5477 | 952.7 | 359.5 | |
|
previous
or next observation for the same group /

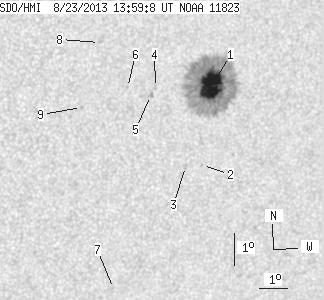

back to the solar disc SDO HMI 2013-08-23 13:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.82 | 252.67 | 26.51 | 149.43 | -7.02 | 139.67 | 30.09 | 245.61 | 0.5485 | 1246.7 | 367.8 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -9.52 | 139.56 | 29.98 | 241.47 | 0.5631 | 668.0 | 449.9 | |
| 0.00 | 2.07 | 0.00 | 1.23 | -9.51 | 138.95 | 29.38 | 240.98 | 0.5555 | 416.0 | 364.0 | |
| 0.00 | 1.62 | 0.00 | 0.94 | -6.96 | 137.70 | 28.13 | 244.16 | 0.5220 | 835.0 | 665.6 | |
| 0.00 | 2.87 | 0.00 | 1.67 | -7.20 | 137.55 | 27.97 | 243.61 | 0.5215 | 695.0 | 600.5 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -6.90 | 136.73 | 27.16 | 243.43 | 0.5087 | -672.0 | -538.9 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -13.27 | 136.83 | 27.25 | 233.24 | 0.5585 | -788.0 | -587.7 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -5.44 | 135.70 | 26.12 | 245.18 | 0.4849 | -751.0 | -453.8 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -7.44 | 135.20 | 25.62 | 241.06 | 0.4919 | -575.0 | -544.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
