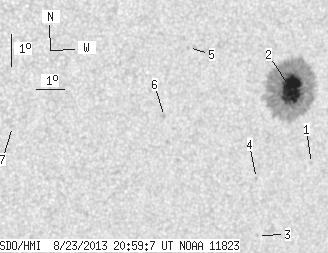

SDO HMI 2013-08-23 20:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.14 | 245.19 | 24.20 | 151.42 | -7.11 | 139.65 | 33.94 | 248.05 | 0.5996 | 910.6 | 365.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-08-23 20:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.74 | -9.46 | 140.71 | 35.01 | 245.18 | 0.6257 | 498.0 | 364.3 | |
| 39.14 | 238.71 | 24.20 | 147.51 | -7.07 | 139.73 | 34.02 | 248.17 | 0.6004 | 1211.4 | 384.2 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -11.62 | 138.96 | 33.26 | 240.84 | 0.6174 | -722.0 | -574.7 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -9.79 | 138.70 | 33.00 | 243.33 | 0.6028 | 662.0 | 535.6 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -5.51 | 135.90 | 30.20 | 248.21 | 0.5413 | -796.0 | -638.0 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -7.61 | 135.20 | 29.49 | 244.13 | 0.5444 | -707.0 | -552.2 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -7.62 | 129.98 | 24.28 | 239.32 | 0.4757 | -750.0 | -534.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
