SDO HMI 2013-08-23 21:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.25 | 239.28 | 23.81 | 148.84 | -7.16 | 139.68 | 34.53 | 248.34 | 0.6073 | 897.6 | 366.8 | |
|
previous
or next observation for the same group /

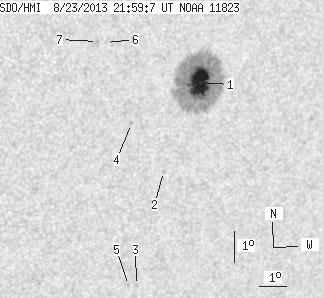

back to the solar disc SDO HMI 2013-08-23 21:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.25 | 232.44 | 23.81 | 144.63 | -7.08 | 139.74 | 34.59 | 248.49 | 0.6077 | 1180.6 | 383.7 | |
| 0.00 | 1.17 | 0.00 | 0.73 | -9.80 | 138.67 | 33.52 | 243.69 | 0.6093 | 548.0 | 453.1 | |
| 0.00 | 1.26 | 0.00 | 0.80 | -13.39 | 138.15 | 33.00 | 238.13 | 0.6262 | -643.0 | -455.0 | |
| 0.00 | 1.53 | 0.00 | 0.93 | -8.19 | 137.34 | 32.19 | 245.20 | 0.5830 | 666.0 | 546.7 | |
| 0.00 | 1.17 | 0.00 | 0.74 | -13.37 | 137.85 | 32.70 | 237.93 | 0.6226 | -675.0 | -585.4 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -5.59 | 136.21 | 31.06 | 248.65 | 0.5535 | -502.0 | -414.7 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -5.54 | 135.92 | 30.77 | 248.54 | 0.5493 | -744.0 | -656.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
