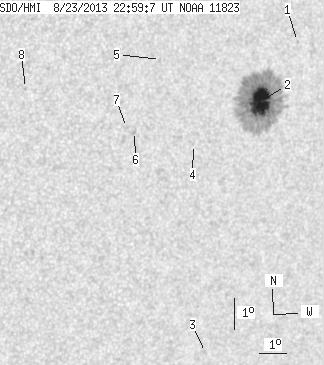

SDO HMI 2013-08-23 22:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.97 | 236.51 | 24.43 | 148.09 | -7.12 | 139.62 | 35.03 | 248.67 | 0.6136 | 797.7 | 345.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-08-23 22:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.57 | -5.31 | 141.00 | 36.40 | 252.20 | 0.6229 | -557.0 | -462.6 | |
| 38.97 | 227.97 | 24.43 | 142.90 | -7.08 | 139.74 | 35.15 | 248.81 | 0.6149 | 1142.6 | 378.3 | |
| 0.00 | 1.35 | 0.00 | 0.88 | -14.99 | 138.73 | 34.14 | 236.83 | 0.6499 | -632.0 | -478.9 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -8.26 | 137.37 | 32.78 | 245.50 | 0.5909 | 566.0 | 509.6 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -5.52 | 135.98 | 31.38 | 248.98 | 0.5573 | -705.0 | -482.1 | |
| 0.00 | 2.24 | 0.00 | 1.34 | -7.71 | 135.20 | 30.60 | 244.82 | 0.5596 | -569.0 | -482.0 | |
| 0.00 | 1.62 | 0.00 | 0.96 | -7.56 | 134.90 | 30.31 | 244.83 | 0.5548 | -255.0 | -341.3 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -6.13 | 131.30 | 26.70 | 244.37 | 0.4975 | -689.0 | -590.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
