SDO HMI 2013-08-23 23:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.46 | 238.96 | 23.02 | 150.81 | -7.13 | 139.70 | 35.66 | 249.03 | 0.6217 | 837.3 | 363.4 | |
|
previous
or next observation for the same group /

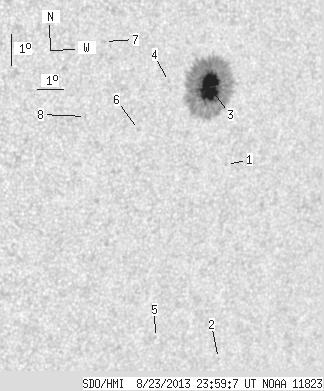

back to the solar disc SDO HMI 2013-08-23 23:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.76 | -9.58 | 140.67 | 36.62 | 246.01 | 0.6461 | 542.0 | 404.2 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -15.85 | 141.42 | 37.37 | 238.03 | 0.6907 | -318.0 | -428.7 | |
| 36.46 | 231.94 | 23.02 | 146.40 | -7.06 | 139.75 | 35.71 | 249.16 | 0.6220 | 1110.4 | 377.9 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -6.79 | 138.20 | 34.15 | 248.66 | 0.6007 | 707.0 | 569.8 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -14.97 | 138.79 | 34.74 | 237.31 | 0.6564 | -587.0 | -495.1 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -8.22 | 137.22 | 33.17 | 245.82 | 0.5958 | 668.0 | 457.5 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -5.38 | 135.77 | 31.73 | 249.43 | 0.5614 | -708.0 | -615.3 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -7.68 | 135.25 | 31.21 | 245.30 | 0.5673 | -729.0 | -569.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
