SDO HMI 2013-08-24 00:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.73 | 236.47 | 23.36 | 150.27 | -7.13 | 139.73 | 36.23 | 249.35 | 0.6291 | 973.0 | 362.3 | |
|
previous
or next observation for the same group /

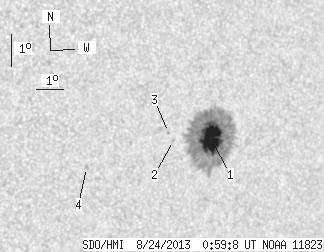

back to the solar disc SDO HMI 2013-08-24 00:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.73 | 232.60 | 23.36 | 147.90 | -7.13 | 139.78 | 36.28 | 249.38 | 0.6297 | 1077.6 | 369.1 | |
| 0.00 | 0.99 | 0.00 | 0.62 | -7.06 | 138.34 | 34.85 | 248.67 | 0.6110 | 599.0 | 481.2 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -6.79 | 138.14 | 34.64 | 248.95 | 0.6070 | 658.0 | 557.2 | |
| 0.00 | 1.80 | 0.00 | 1.08 | -7.68 | 135.21 | 31.71 | 245.66 | 0.5739 | -780.0 | -611.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
