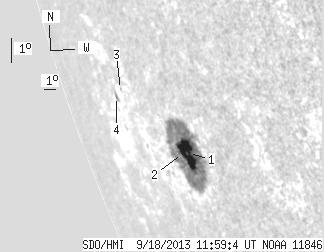

SDO HMI 2013-09-18 11:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.43 | 162.51 | 41.24 | 256.67 | -17.59 | 59.17 | -68.12 | 111.25 | 0.9504 | 372.0 | 79.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-09-18 11:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.02 | 158.88 | 32.61 | 248.89 | -17.61 | 59.47 | -67.82 | 111.34 | 0.9490 | 543.9 | 87.3 | |
| 5.41 | -1.00 | 8.63 | -1.00 | -17.68 | 58.90 | -68.39 | 111.27 | 0.9520 | -173.9 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.90 | -16.18 | 54.22 | -73.07 | 108.71 | 0.9711 | -269.0 | -353.0 | |
| 0.00 | 3.19 | 0.00 | 6.88 | -16.49 | 53.45 | -73.84 | 108.88 | 0.9743 | 119.0 | -88.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
