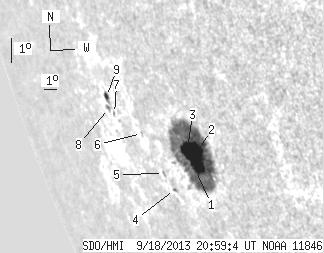

SDO HMI 2013-09-18 20:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.64 | 206.43 | 49.68 | 265.93 | -17.61 | 58.88 | -63.45 | 112.51 | 0.9243 | 559.4 | 138.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-09-18 20:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.27 | 195.00 | 0.34 | 247.94 | -18.11 | 59.07 | -63.26 | 113.07 | 0.9243 | -117.7 | 163.8 | |
| 31.64 | -1.00 | 40.01 | -1.00 | -17.62 | 59.31 | -63.02 | 112.64 | 0.9219 | 833.6 | 999999 | |
| 4.70 | -1.00 | 6.09 | -1.00 | -17.70 | 58.69 | -63.63 | 112.54 | 0.9258 | -161.1 | 999999 | |
| 0.35 | 1.15 | 0.50 | 1.64 | -19.02 | 56.86 | -65.46 | 113.40 | 0.9386 | -502.5 | -425.9 | |
| 0.00 | 1.51 | 0.00 | 2.17 | -18.55 | 56.36 | -65.97 | 112.79 | 0.9406 | -344.0 | -303.6 | |
| 0.00 | 0.89 | 0.00 | 1.31 | -17.35 | 55.50 | -66.82 | 111.33 | 0.9434 | 91.0 | 60.4 | |
| 0.00 | 1.15 | 0.00 | 1.86 | -16.94 | 53.54 | -68.78 | 110.43 | 0.9530 | -426.0 | -399.6 | |
| 0.00 | 2.39 | 0.00 | 3.95 | -16.83 | 53.09 | -69.23 | 110.21 | 0.9550 | -249.0 | -148.7 | |
| 1.68 | 4.34 | 2.74 | 7.06 | -16.43 | 53.24 | -69.09 | 109.84 | 0.9538 | -163.9 | -171.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
