SDO HMI 2013-09-19 15:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.59 | 298.68 | 47.72 | 280.34 | -17.64 | 58.69 | -53.20 | 115.97 | 0.8506 | 621.9 | 166.6 | |
|
previous
or next observation for the same group /

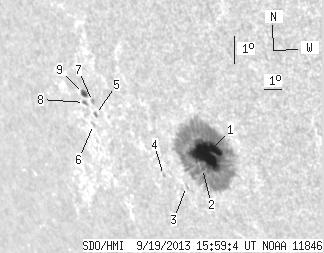

back to the solar disc SDO HMI 2013-09-19 15:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.28 | 284.33 | 42.04 | 264.88 | -17.67 | 59.01 | -52.88 | 116.11 | 0.8482 | 840.4 | 189.7 | |
| 0.97 | -1.00 | 0.92 | -1.00 | -18.18 | 58.58 | -53.31 | 116.50 | 0.8533 | -62.5 | 999999 | |
| 0.00 | 1.51 | 0.00 | 1.48 | -18.89 | 57.38 | -54.51 | 116.81 | 0.8651 | 309.0 | 205.8 | |
| 0.00 | 0.97 | 0.00 | 0.98 | -18.65 | 56.21 | -55.68 | 116.11 | 0.8734 | -419.0 | -323.5 | |
| 0.62 | 1.77 | 0.68 | 1.93 | -17.00 | 53.04 | -58.85 | 113.24 | 0.8925 | -506.0 | -433.5 | |
| 0.00 | 1.68 | 0.00 | 1.86 | -17.36 | 52.73 | -59.16 | 113.52 | 0.8956 | -436.0 | -402.0 | |
| 0.00 | 2.04 | 0.00 | 2.21 | -16.58 | 53.07 | -58.82 | 112.79 | 0.8913 | -647.0 | -512.1 | |
| 0.71 | 2.04 | 0.78 | 2.25 | -16.67 | 52.53 | -59.36 | 112.72 | 0.8954 | -297.0 | -233.1 | |
| 3.01 | 4.34 | 3.30 | 4.75 | -16.37 | 52.62 | -59.27 | 112.43 | 0.8940 | -405.8 | -378.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
