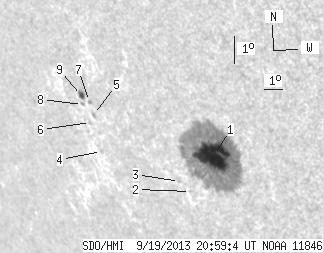

SDO HMI 2013-09-19 20:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.89 | 305.80 | 52.68 | 269.27 | -17.62 | 58.68 | -50.45 | 117.08 | 0.8274 | 759.7 | 198.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-09-19 20:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.79 | 292.34 | 49.54 | 255.77 | -17.65 | 58.97 | -50.16 | 117.23 | 0.8251 | 998.3 | 227.2 | |
| 0.00 | 0.71 | 0.00 | 0.65 | -19.01 | 57.24 | -51.89 | 118.00 | 0.8446 | 321.0 | 263.5 | |
| 0.00 | 1.15 | 0.00 | 1.07 | -18.73 | 56.79 | -52.34 | 117.50 | 0.8473 | -463.0 | -445.5 | |
| 0.00 | 1.15 | 0.00 | 1.18 | -18.16 | 52.78 | -56.34 | 115.34 | 0.8771 | -509.0 | -432.9 | |
| 0.00 | 1.59 | 0.00 | 1.61 | -16.94 | 52.91 | -56.22 | 114.06 | 0.8727 | -667.0 | -576.6 | |
| 0.00 | 1.59 | 0.00 | 1.63 | -17.23 | 52.60 | -56.53 | 114.27 | 0.8759 | -491.0 | -367.8 | |
| 0.00 | 1.06 | 0.00 | 1.07 | -16.52 | 52.87 | -56.25 | 113.60 | 0.8719 | -688.0 | -624.7 | |
| 0.00 | 1.51 | 0.00 | 1.53 | -16.67 | 52.40 | -56.72 | 113.59 | 0.8759 | -418.0 | -276.2 | |
| 3.10 | 4.70 | 3.14 | 4.76 | -16.37 | 52.48 | -56.64 | 113.30 | 0.8745 | -381.2 | -300.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
