SDO HMI 2013-09-19 21:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.84 | 320.36 | 47.72 | 279.09 | -17.64 | 58.61 | -49.97 | 117.32 | 0.8231 | 735.2 | 203.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-09-19 21:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

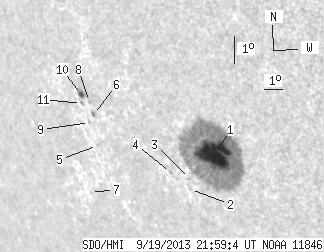

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.47 | 303.61 | 44.37 | 262.60 | -17.67 | 58.95 | -49.63 | 117.49 | 0.8204 | 1023.3 | 237.5 | |
| 0.00 | 1.06 | 0.00 | 0.97 | -18.99 | 57.20 | -51.37 | 118.20 | 0.8403 | 208.0 | 183.8 | |
| 0.00 | 0.71 | 0.00 | 0.64 | -18.62 | 57.31 | -51.26 | 117.84 | 0.8380 | 58.0 | 51.8 | |
| 0.00 | 1.33 | 0.00 | 1.22 | -18.52 | 56.38 | -52.19 | 117.33 | 0.8454 | -586.0 | -504.9 | |
| 0.00 | 0.80 | 0.00 | 0.81 | -18.02 | 52.64 | -55.93 | 115.34 | 0.8736 | -629.0 | -541.4 | |
| 0.71 | 1.59 | 0.70 | 1.58 | -16.98 | 52.90 | -55.67 | 114.30 | 0.8686 | -633.6 | -563.6 | |
| 0.00 | 0.71 | 0.00 | 0.76 | -19.71 | 51.35 | -57.23 | 116.68 | 0.8878 | -472.0 | -416.4 | |
| 0.00 | 1.06 | 0.00 | 1.05 | -16.56 | 52.86 | -55.71 | 113.83 | 0.8677 | -697.0 | -608.2 | |
| 0.00 | 0.89 | 0.00 | 0.89 | -17.28 | 52.54 | -56.04 | 114.50 | 0.8723 | -367.0 | -352.3 | |
| 2.66 | 7.18 | 2.65 | 7.15 | -16.37 | 52.50 | -56.08 | 113.50 | 0.8701 | -461.4 | -408.9 | |
| 0.00 | 1.42 | 0.00 | 1.42 | -16.68 | 52.36 | -56.21 | 113.78 | 0.8720 | -284.0 | -222.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
