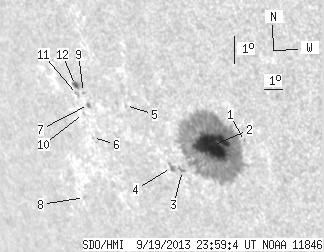

SDO HMI 2013-09-19 23:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.58 | 335.05 | 43.95 | 285.07 | -17.64 | 58.57 | -48.90 | 117.80 | 0.8139 | 686.8 | 232.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2013-09-19 23:59:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.77 | 0.00 | 1.44 | -17.37 | 60.52 | -46.95 | 118.40 | 0.7951 | 747.0 | 600.7 | |
| 47.32 | 313.25 | 39.88 | 264.61 | -17.66 | 58.91 | -48.56 | 117.96 | 0.8110 | 1030.7 | 270.3 | |
| 0.53 | 2.48 | 0.47 | 2.20 | -18.66 | 57.05 | -50.43 | 118.25 | 0.8311 | 151.2 | 87.0 | |
| 0.00 | 3.28 | 0.00 | 2.94 | -18.62 | 56.51 | -50.96 | 117.97 | 0.8355 | -538.0 | -518.4 | |
| 0.00 | 0.89 | 0.00 | 0.81 | -16.75 | 54.91 | -52.56 | 115.23 | 0.8425 | -548.0 | -470.1 | |
| 0.00 | 0.53 | 0.00 | 0.52 | -18.04 | 52.59 | -54.88 | 115.74 | 0.8655 | -586.0 | -506.2 | |
| 0.89 | 1.95 | 0.85 | 1.88 | -16.93 | 52.87 | -54.61 | 114.64 | 0.8600 | -652.7 | -536.2 | |
| 0.00 | 1.24 | 0.00 | 1.30 | -20.18 | 51.03 | -56.44 | 117.47 | 0.8835 | -450.0 | -355.7 | |
| 0.00 | 0.89 | 0.00 | 0.85 | -16.55 | 52.75 | -54.72 | 114.18 | 0.8598 | -653.0 | -596.4 | |
| 0.00 | 0.89 | 0.00 | 0.87 | -17.27 | 52.44 | -55.03 | 114.85 | 0.8644 | -405.0 | -352.4 | |
| 0.00 | 2.39 | 0.00 | 2.33 | -16.66 | 52.38 | -55.09 | 114.16 | 0.8631 | -424.0 | -250.6 | |
| 2.84 | 5.49 | 2.75 | 5.32 | -16.36 | 52.40 | -55.08 | 113.84 | 0.8621 | -562.7 | -407.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
