SDO HMI 2013-09-20 09:01:19 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.41 | 364.88 | 48.24 | 282.07 | -17.63 | 58.54 | -43.97 | 120.22 | 0.7679 | 743.1 | 210.7 | |
|
previous
or next observation for the same group /

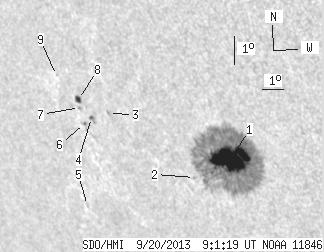

back to the solar disc SDO HMI 2013-09-20 09:01:19 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.24 | 348.66 | 44.63 | 268.13 | -17.66 | 58.84 | -43.67 | 120.41 | 0.7652 | 990.0 | 237.3 | |
| 0.00 | 1.24 | 0.00 | 0.99 | -18.45 | 56.98 | -45.54 | 120.33 | 0.7866 | 440.0 | 315.1 | |
| 0.00 | 2.13 | 0.00 | 1.79 | -16.68 | 53.57 | -48.94 | 116.65 | 0.8104 | -487.0 | -390.5 | |
| 0.80 | 3.37 | 0.69 | 2.89 | -16.90 | 52.67 | -49.85 | 116.50 | 0.8193 | -648.4 | -568.5 | |
| 0.00 | 0.98 | 0.00 | 0.89 | -19.94 | 51.22 | -51.29 | 119.26 | 0.8430 | -509.0 | -395.8 | |
| 0.44 | 2.48 | 0.39 | 2.16 | -17.13 | 52.24 | -50.28 | 116.58 | 0.8241 | -580.8 | -447.2 | |
| 0.00 | 1.24 | 0.00 | 1.08 | -16.62 | 52.18 | -50.34 | 115.97 | 0.8227 | -233.0 | -281.3 | |
| 2.93 | 4.34 | 2.53 | 3.75 | -16.35 | 52.23 | -50.29 | 115.69 | 0.8213 | -522.4 | -411.0 | |
| 0.00 | 0.44 | 0.00 | 0.39 | -15.66 | 51.38 | -51.14 | 114.55 | 0.8264 | -508.0 | -453.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
